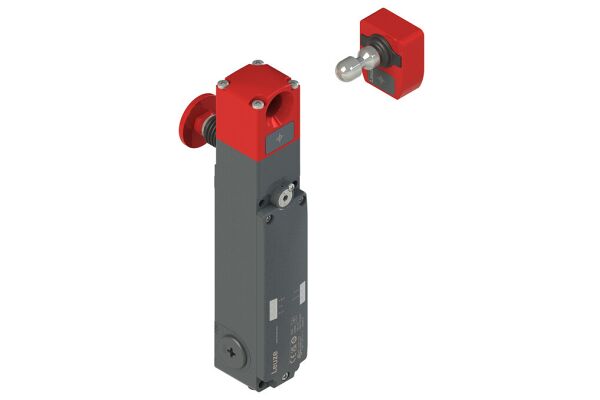

The L300 series is a high-performance safety locking device with guard interlocking, designed according to EN ISO 14119 (type 4) standards. It features a quiescent current principle for actuator locking and can achieve a performance level up to e, EN ISO 13849-1.

SKU

2110-50132058
Manufacturer code

50132058
With status indication

false
Suitable for safety functions

true
Guard locking force

9750 N
With escape release

false
Type of guard locking

Quiescent current principle
With auxiliary release

false
Rated control supply voltage magnet drive DC

24 - 24 V
Switching principle

Other
Construction type housing

Cuboid
Housing material

Metal
Metal
Metal
Metal
Coating housing

Powder coating
Type of interface

None
Type of interface for safety communication

None
Type of electric connection

Connector M12
Explosion safety category for gas

None
Explosion safety category for dust

None
Ambient temperature during operating

-20 - 50 °C
Degree of protection (IP)

IP67
Series

L300
Operational controls

Standard
Encoding level

High, EN ISO 14119
Release device

Auxiliary release
Escape release button
Clamping force, maximum

9750
Performance Level (PL)

Up to and including e
ISO Standard

EN ISO 13849-1
Operating principle

Quiescent current principle – Actuator locked if electromagnet is deactivated

Manufacturer Leuze
