PS315-Z11-S300 Machine safety position switch
Manufacturer: Schmersal Code: 103015096 SKU: 4030661502328
Metal enclosure
Quick connection technology as connection terminals rotated by 45°
Simple and quick to adjust the control elements by 45°.
cable entry 1 x M20 x 1,5
Design to EN 50041
LED version available
Plastic actuating element
Quick connection technology as connection terminals rotated by 45°
Simple and quick to adjust the control elements by 45°.
cable entry 1 x M20 x 1,5
Design to EN 50041
LED version available
Plastic actuating element
- SKU4030661502373
- Manufacturer code103015114
- Current, Required rated short-circuit current to EN 60947-5-1400 A
- Current, Thermal test current5 A
- Current, Utilisation category DC-133 A

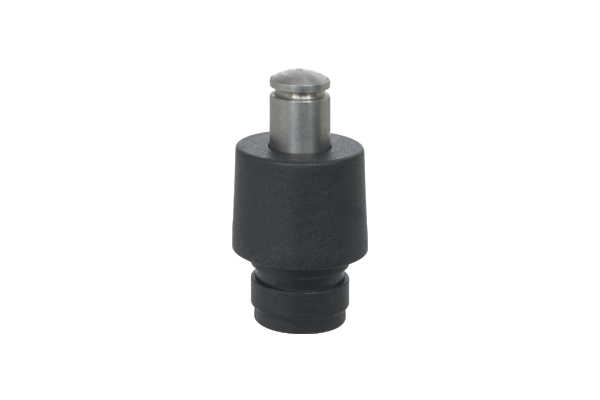

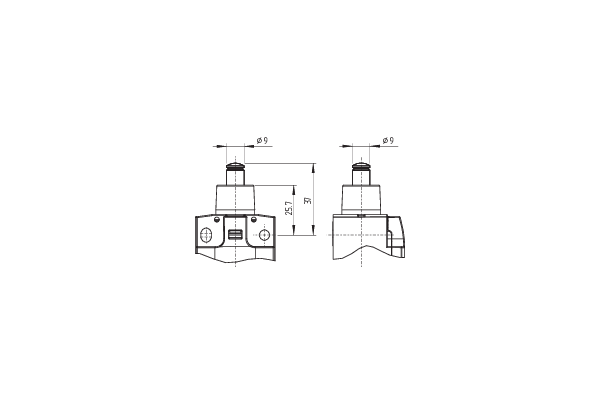

- Actuating elementPlunger S300
- Type of Execution, Housing construction formNorm construction design
- Type of Execution, IP Protection class, GeneralIP67
IP66 - Type of Execution, Mechanical life, minimum,10000000 Operations
- Height, Sensor104 mm
- Length, Sensor37 mm
- Width, Sensor41 mm
- Electrical data, Cable section, maximum1.5 mm²
- Electrical data, Cable section, minimum0.34 mm²
- Electrical data, Max. fuse rating6 A gG D-fuse quick blow
- Electrical data, Utilisation categoryDC-13
AC-15 - Material, contacts, electricalSilver
- Material, housingMetal, zinc die-cast
- Movement, actuating speed, maximum0.5 m/s
- Note, Electrical Data, Cable sectionSettle length of the conductor: 5...6mm
- Number, Auxiliary contacts1
- PIM maintenance statusDischarge "Online catalog"

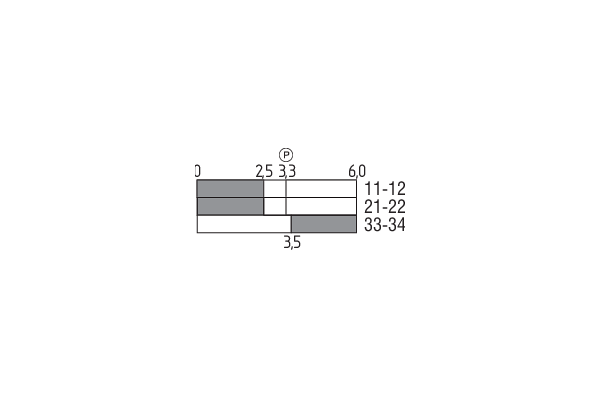

- Type of switch function1 NO contact, 2 NC contacts
- Type of electric connectionScrew terminals M20 x 1.5
- Safety parameters, Mission time20 Year(s)
- Safety parameterEN ISO 13849-1
- SAP, basic quantity unitPiece
- SAP, product groupInitial
- SAP, gross weight343.000 g
- SAP, net weight343.000 g
- Temperature, Ambient temperature[generated product variant]-30 ... +80 °C
- Temperature, ambient temperature, maximum80 °C
- Temperature, ambient temperature, minimum-30 °C
- Time, Switching frequency5000 /h
- Voltage, Rated impulse withstand voltage4 kV
- Voltage, rated insulation voltage300 V
- Voltage, Utilisation category AC-15240 VAC
- Voltage, Utilisation category DC-1324 VDC
- Web TypeProduct range
- Type of Execution, Actuator type DIN EN 50041B
- Material, enclosure coatingpainted
- Movement, actuating speed, minimum60 mm/min
- Number, Safety contacts2
- PNV, standard, certificatesCCC
cULus - SAP, EAN (European Article Number)4030661502373
- Selection (Yes/No), Safety functionsYes
- Selection (Yes/No), TracepartsYes
- Force, Positive break force, minimum Force,50 N
- Standard, standardsEN IEC 60947-5-1
- Type of Execution, Degree of pollution IEC/EN 60947-13
- Type of Execution, Overvoltage category IEC/EN 60664-1I
- Safety parameters, B10d, Normally-closed contact (NC),20000000 Operations
- Tightening torque, tightening torque, Electrical connection[generated product variant]0.6 ... 0.8 Nm
- Tightening torque, tightening torque, Electrical connection, maximum0.8 Nm
- Torque, tightening torque, electrical connection, minimum0.6 Nm
- Torque, tightening torque, screw, mounting2 Nm
- Torque, tightening torque, screw, housing cover2.6 Nm
