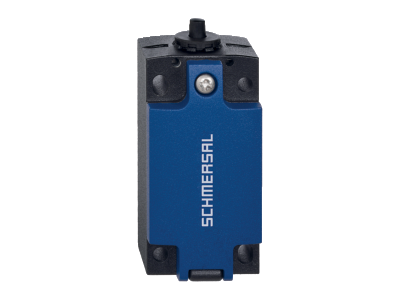

PS315-Z02-S300 Machine safety position switch

PS315-Z02-S300
Metal enclosure
Quick connection technology as connection terminals rotated by 45°
Simple and quick to adjust the control elements by 45°.
cable entry 1 x M20 x 1,5
Design to EN 50041
LED version available
Plastic actuating element
  • SKU
    4030661502342
  • Manufacturer code
    103015097
  • Current, Required rated short-circuit current to EN 60947-5-1
    400 A
  • Current, Thermal test current
    10 A
  • Current, Utilisation category DC-13
    3 A
  • Actuating element
    Plunger S300
  • Type of Execution, Housing construction form
    Norm construction design
  • Type of Execution, IP Protection class, General
    IP67
    IP66
  • Type of Execution, Mechanical life, minimum,
    10000000 Operations
  • Height, Sensor
    104 mm
  • Length, Sensor
    37 mm
  • Width, Sensor
    41 mm
  • Electrical data, Cable section, maximum
    1.5 mm²
  • Electrical data, Cable section, minimum
    0.34 mm²
  • Electrical data, Max. fuse rating
    6 A gG D-fuse quick blow
  • Electrical data, Utilisation category
    DC-13
    AC-15
  • Material, contacts, electrical
    Silver
  • Material, housing
    Metal, zinc die-cast
  • Movement, actuating speed, maximum
    0.5 m/s
  • Note, Electrical Data, Cable section
    Settle length of the conductor: 5...6mm
  • PIM maintenance status
    Discharge "Online catalog"
  • Type of switch function
    2 NC contact
  • Type of electric connection
    Screw terminals M20 x 1.5
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameter
    EN ISO 13849-1
  • SAP, basic quantity unit
    Piece
  • SAP, product group
    Initial
  • SAP, gross weight
    354.780 g
  • SAP, net weight
    354.780 g
  • Temperature, Ambient temperature[generated product variant]
    -30 ... +80 °C
  • Temperature, ambient temperature, maximum
    80 °C
  • Temperature, ambient temperature, minimum
    -30 °C
  • Time, Switching frequency
    5000 /h
  • Voltage, Rated impulse withstand voltage
    4 kV
  • Voltage, rated insulation voltage
    300 V
  • Voltage, Utilisation category AC-15
    240 VAC
  • Voltage, Utilisation category DC-13
    24 VDC
  • Web Type
    Product range
  • Type of Execution, Actuator type DIN EN 50041
    B
  • Material, enclosure coating
    painted
  • Movement, actuating speed, minimum
    10 mm/min
  • Number, Safety contacts
    2
  • PNV, standard, certificates
    CCC
    cULus
  • SAP, EAN (European Article Number)
    4030661502342
  • Selection (Yes/No), Safety functions
    Yes
  • Selection (Yes/No), Traceparts
    Yes
  • Force, Positive break force, minimum Force,
    50 N
  • Standard, standards
    EN IEC 60947-5-1
  • Type of Execution, Degree of pollution IEC/EN 60947-1
    3
  • Type of Execution, Overvoltage category IEC/EN 60664-1
    I
  • Safety parameters, B10d, Normally-closed contact  (NC),
    20000000 Operations
  • Tightening torque, tightening torque, Electrical connection[generated product variant]
    0.6 ... 0.8 Nm
  • Tightening torque, tightening torque, Electrical connection, maximum
    0.8 Nm
  • Torque, tightening torque, electrical connection, minimum
    0.6 Nm
  • Torque, tightening torque, screw, mounting
    2 Nm
  • Torque, tightening torque, screw, housing cover
    2.6 Nm
