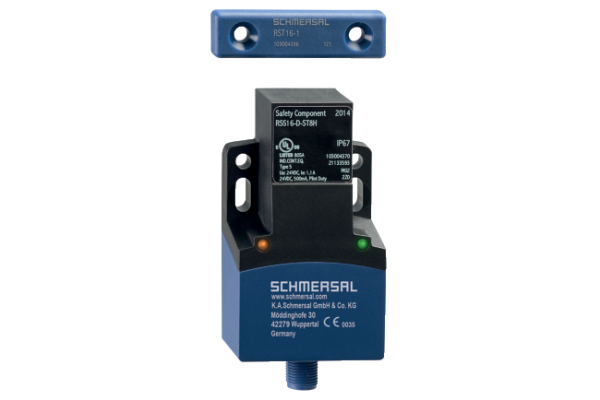

Individual coding with RFID technology
Coding level "High" according to ISO 14119
1 x connector plug M12, 8-pole
Series-wiring unlimited
without latching
Thermoplastic enclosure
RFID-technology for needs-based protection against tampering
3 different directions of actuation
Door stop with magnetic latching
Connection terminal or plug connection
Suitable for series-wiring
Repeated individual coding with RFID technology

SKU

4030661462127
Manufacturer code

103009532
Current, Residual current, Fail-safe output, maximum

0.5 mA
Current, Rated operating current

2100 mA
Current, Rated operating current, Safe digital outputs

1000 mA
Current, output current, fail-safe output, maximum

1 A
Current, Utilisation category DC-12, Fail-safe digital output

1 A
Current, Utilisation category DC-13, Fail-safe digital output

1 A
Type of Execution, for degree of pollution VDE 0100

3
Type of Execution, Housing construction form

Block
Type of Execution, Terminals, mechanical

not flush
Type of Execution, IP Protection class, General

IP67
IP65
IP66
Type of Execution, Overvoltage category VDE 0100

3
Type of Execution, Overvoltage category IEC/EN 60664-1

III
Type of execution, sensor, topology

Sensor for series wiring
Type of execution, switching output, fail-safe output, electric

p-type
Distance, Hysteresis, Mechanical, maximum

2 mm
Distance, Repeat accuracy R _R

0.5 mm
Length, Sensor

91 mm
Area, ensured switch distance OFF S_ar

30 mm
Area, ensured switch distance ON S_ao

12 mm
Range, switch distance S, typical

15 mm
Elektrische Daten, Absicherung des Diagnoseausganges, Allgemein

short-circuit proof, p-type
Elektrische Daten, Absicherung des Sicherheitsausganges, Allgemein

short-circuit proof, p-type
Material, active area

Glass-fibre, reinforced thermoplastic
Housing material

Plastic, glass-fibre reinforced thermoplastic, self-extingui
Standard, standards

EN IEC 60947-5-3
Note, LED switching conditions display

LED green: Supply voltage
LED red: Fault
LED yellow: Operating condition
Multi-coloured LED: Green, Red
Number, fail-safe digital outputs

2
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

cULus
TÜV
UKCA
FCC
IC
ANATEL
Recommendation, actuator

RST16-1
Recommended, Safety switchgear

PROTECT PSC1
SRB-E-301ST
SRB-E-201LC
Type of electric connection

Connector M12, 8-pole
Review, restistance to shock

30 g / 11 ms
Safety parameters, Category, EN ISO 13849

4
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN IEC 61508
EN ISO 13849-1
Performance Level

e
Safety values, PFD value

0.000000000063 /h
Safety parameters, Safety Integrity Level (SIL)

3
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661462127
SAP, product group

Initial
SAP, gross weight

150.000 g
SAP, net weight

150.000 g
Included in delivery, number and type, general

Actuator must be ordered separately.
Temperature, Ambient temperature[generated product variant]

-28 ... +70 °C
Temperature, ambient temperature, maximum

70 °C
Temperature, ambient temperature, minimum

-28 °C
Temperature, storage and transport temperature,[generated product variant]

-28 ... +85 °C
Temperature, storage and transport temperature, maximum

85 °C
Temperature, storage and transport temperature, minimum

-28 °C
Time, Duration of risk, maximum

200 ms
Time, Reaction, maximum

100 ms
Tolerance, operating voltage, DC, maximum

10 %
Tolerance, operating voltage, DC, minimum

-15 %
Voltage, voltage drop Ud, maximum

1 V
Voltage, Rated impulse withstand voltage

0.8 kV
Voltage, rated insulation voltage

32 VDC
Voltage, rated operating voltage

24 VDC
Voltage, type

DC
Voltage, Utilisation category DC-12, Fail-safe digital output

24 VDC
Voltage, Utilisation category DC-13, Fail-safe digital output

24 VDC
Web Type

Product range
Selection (yes/no), cascadable

Yes
Selection (Yes/No), Short-circuit recognition

Yes
Selection (Yes/No), EPLAN

Yes
Selection (Yes/No), Safety functions

Yes
Selection (Yes/No), Integral System Diagnostics, status

Yes
Selection (Yes/No), Short circuit detection

Yes
Selection (Yes/No), Traceparts

Yes
Current, Utilisation category DC-12, Diagnostic output

0.05 A
Current, Utilisation category DC-13, Diagnostic output

0.05 A
Type of execution, switching output, diagnostic output, electric

p-type
Electrical data, Utilisation category DC-12, Diagnostic output [generated product variant]

24 VDC / 0.05 A
Number, Semi-conductor outputs with signaling function

1
Voltage, Utilisation category DC-12, Diagnostic output

24 VDC
Voltage, Utilisation category DC-13, Diagnostic output

24 VDC
Coding, Coding level according to EN ISO 14119

High
Type of application, Actuating panel

front side
rear
from head
Current, Required rated short-circuit current to EN 60947-5-1

100 A
Type of Execution, Active area

lateral
front side
cover-side
Height, Sensor

30 mm
Width, Sensor

52 mm
Standard, EMC rating

IEC 60947-3
Standard, interfering radiation

IEC 61000-6-4
Notes, length, sensor chain

Cable length and cross-section change the voltage drop depen
Number, LED's

2
Selection (Yes/No), Diagnostic output

Yes
Note, series connection, sensors

Unlimited number of devices, oberserve external line fusing,
Voltage, rated operating voltage, maximum

26.4 VDC
Voltage, rated operating voltage, minimum

20.4 VDC
Type of application, Relative humidity, maximum

93 %
Coding, general information

Individual coding
Current, consumption, Safety inputs

5 mA
Current, Operating current, minimum

0.5 mA
Type of execution, mounting

2 x M5, Cylinder head screw
Height, permissible installation height above sea level, maximum

2000 m
Note, Relative humidity

non-condensing
non-icing
Safety values, PFD value

0.000015
Time, Switching frequency, maximum

1 Hz
Time, Time to readiness, maximum

2000 ms
Selection (Yes/No), CADENAS

Yes
Selection (Yes/No), Series-wiring

Yes
Current, Rated operating current, diagnostic output

50 mA
Type of Execution, Cable entry

M12 (A-coding)
Torque, tightening torque, screw, mounting

2 Nm

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
