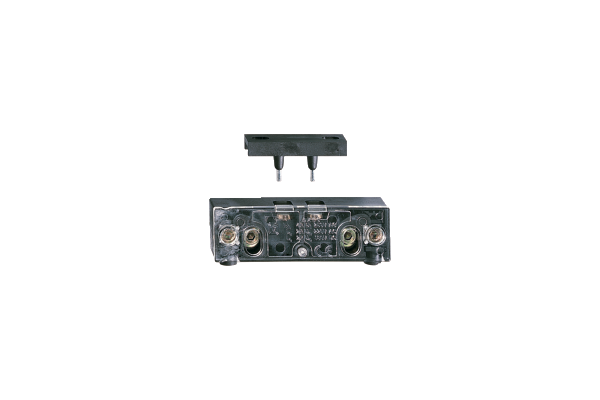

AZ 07 K 08106 Lift Switchgear

AZ 07 K 08106
Single wire entry
Thermoplastic enclosure
Contact pin in actuator bridge
1 Actuating planes
Protection class IP20
transparent cover
fixing screws M4 undetachable, captive
Fitting dimensions suitable for AZ 06x
Self-cleaning through the frictional mouvement of the contact bridges
Enclosure with mounting slots
  • SKU
    4030661362809
  • Manufacturer code
    101195819
  • Type of application, Actuating panel
    1
  • Current, Thermal test current
    4 A
  • Current, Utilisation category AC-15
    2 A
  • Current, Utilisation category DC-13
    2 A
  • Type of Execution, Cable entry
    Single wire entry
  • Type of Execution, IP Protection class, General
    IP20
  • Type of Execution, Mechanical life, minimum,
    1000000 Operations
  • Type of execution, mounting
    Fine-adjustment through slotted holes
  • Switching principle
    Self-cleaning pressure contact
  • Depth, General
    19 mm
  • Height, General
    22 mm
  • Stroke, Actuating stroke
    7 mm
  • Width, General
    72 mm
  • Electrical data, Max. fuse rating
    2 A gG D-fuse
  • Electrical data, Utilisation category
    DC-13
    AC-15
  • Force, actuating force, approx.
    1.6 N
  • Material, contacts, electrical
    Silver-plated Cu rivets
  • Housing material
    Plastic, glass-fibre reinforced thermoplastic, self-extingui
  • Material, housing cover
    transparent thermoplastic, self-extinguishing
  • Standard, standards
    EN 81-20
    EN 81-50
  • Number, Safety contacts
    1
  • PIM maintenance status
    Discharge "Online catalog"
  • Type of switch function
    Opener (NC)
  • Type of electric connection
    Screw terminals M20 x 1.5
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661362809
  • SAP, product group
    HAWA: Electromechanical switchgear
  • SAP, gross weight
    30.079 g
  • SAP, net weight
    30.079 g
  • Included in delivery, number and type, general
    Actuator must be ordered separately.
  • Temperature, Ambient temperature[generated product variant]
    -15 ... +70 °C
  • Temperature, ambient temperature, maximum
    70 °C
  • Temperature, ambient temperature, minimum
    -15 °C
  • Voltage, rated insulation voltage
    500 V
  • Voltage, Utilisation category AC-15
    230 VAC
  • Voltage, Utilisation category DC-13
    200 VDC
  • Web Type
    Product range
  • Selection (Yes/No),
    Yes
  • Note, General
    The connecting screws can be sealed with plugs. (2 plugs per
  • Type of application, Relative humidity, maximum
    95 %
  • Note, Relative humidity
    non-condensing
