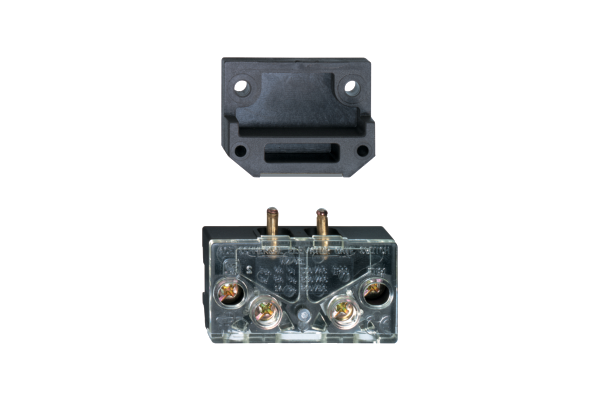

AZ 051 K 08106 Lift Switchgear

AZ 051 K 08106
1 Actuating planes
without cable ducts
Thermoplastic enclosure
Contact pins in the switch
transparent cover
Self-cleaning through the frictional mouvement of the contact bridges
double-break switch
fixing screws M4 Pozidriv self-forming, undetachable, captive
Door lock switch/locking device switch
  • SKU
    4030661362113
  • Manufacturer code
    101195743
  • Type of application, Actuating panel
    1
  • Current, Thermal test current
    4 A
  • Current, Utilisation category AC-15
    2 A
  • Current, Utilisation category DC-13
    1 A
  • Type of Execution, Cable entry
    2 x single conductor version with connecting funnel
  • Type of Execution, IP Protection class, General
    IP00
  • Type of Execution, Mechanical life, minimum,
    1000000 Operations
  • Type of execution, mounting
    Round holes
  • Switching principle
    Self-cleaning pressure contact
  • Depth, General
    16 mm
  • Height, General
    27 mm
  • Stroke, Actuating stroke
    5 mm
  • Width, General
    50 mm
  • Electrical data, Max. fuse rating
    2 A gG D-fuse
  • Electrical data, Utilisation category
    DC-13
    AC-15
  • Material, contacts, electrical
    Silver-plated Cu rivets
  • Housing material
    Glass-fibre reinforced ultramid, self-extinguishing
  • Material, housing cover
    Glass-fibre reinforced ultramid, self-extinguishing
  • Standard, standards
    EN 81-20
    EN 81-50
    CAN/CSA-B44.1
    ASME-A15.5
  • Note, Tightening torque, Electrical connection
    M4 slotted-head combination screws, similar to DIN 7984, wit
  • Number, Safety contacts
    1
  • PIM maintenance status
    Discharge "Online catalog"
  • Type of switch function
    Opener (NC)
  • Type of electric connection
    Screw terminals M20 x 1.5
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661362113
  • SAP, product group
    HAWA: Electromechanical switchgear
  • SAP, gross weight
    26.000 g
  • SAP, net weight
    26.000 g
  • Included in delivery, number and type, general
    Actuator must be ordered separately.
  • Temperature, Ambient temperature[generated product variant]
    -30 ... +70 °C
  • Temperature, ambient temperature, maximum
    70 °C
  • Temperature, ambient temperature, minimum
    -30 °C
  • Voltage, rated insulation voltage
    500 V
  • Voltage, Utilisation category AC-15
    230 VAC
  • Voltage, Utilisation category DC-13
    200 VDC
  • Web Type
    Product range
  • Selection (Yes/No),
    Yes
  • Note, Design, Cable entry
    Without cable ducts
  • Type of application, Relative humidity, maximum
    95 %
  • Force, Actuating force
    1.6 N
  • Note, Relative humidity
    non-condensing
  • Tolerance, percentage
    ± 20 %
  • Tightening torque, tightening torque, Electrical connection, maximum
    1.2 Nm
