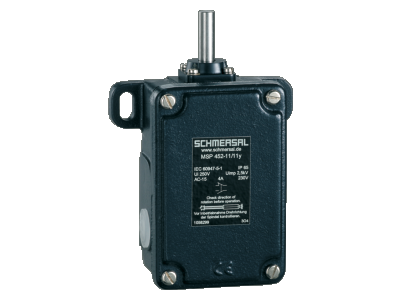

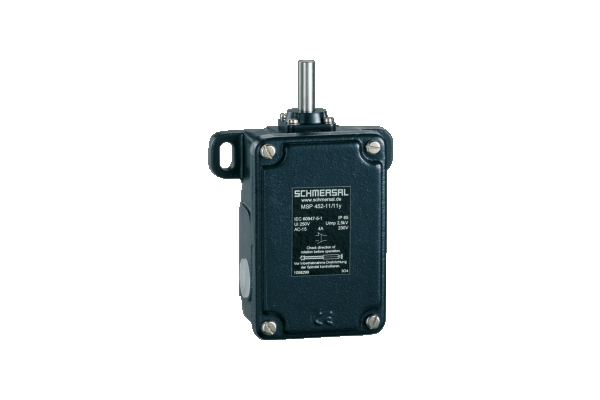

MSP 452-11/11Y-2186 Position switch

MSP 452-11/11Y-2186
2 cable entries
additional nameplate with date of manufacture in the cover
Metal enclosure
4 Contacts
118 mm x 174 mm x 64 mm
  • SKU
    4030661031873
  • Manufacturer code
    101127983
  • Current, Thermal test current
    6 A
  • Current, Utilisation category AC-15
    2.5 A
  • Type of execution, Actuating element
    Plunger
  • Type of Execution, IP Protection class, General
    IP65
  • Type of Execution, Mechanical life, minimum,
    3000000 Operations
  • Type of design, Form, Slide
    Curvature
  • Type of Execution, Switching principle
    Snap action
  • Diameter, Wire cross-section, AWG
    12 AWG
  • Diameter, Plunger
    10 mm
  • Distance, Contact opening
    2 x 0.5 mm
  • Height, Sensor
    174 mm
  • Length, Sensor
    64 mm
  • Width, Sensor
    118 mm
  • Electrical data, Cable section, maximum
    2.5 mm²
  • Electrical data, Cable section, minimum
    1.5 mm²
  • Electrical data, Max. fuse rating
    10 A gG D-fuse
  • Electrical data, Utilisation category
    AC-15
  • Material, housing
    Grey cast iron, galvanised
  • Material, enclosure coating
    painted
  • Standard, standards
    EN IEC 60947-5-1
  • Note, Electrical Data, Cable section
    All indications including the conductor ferrules.
  • Note, General
    This rotating spindle limit switch with snap-action insert i
    By reversing the contacts, the spindle revolutions can be se
  • Number, NC
    2
  • Number, NO contacts
    2
  • PIM maintenance status
    Discharge "Online catalog"
  • Electrical data, Terminal, Connector, Transmitter, General
    Screw terminals M20 x 1.5
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661031873
  • SAP, product group
    Initial
  • SAP, gross weight
    1700.000 g
  • SAP, net weight
    1700.000 g
  • Temperature, Ambient temperature[generated product variant]
    -30 ... +90 °C
  • Temperature, ambient temperature, maximum
    90 °C
  • Temperature, ambient temperature, minimum
    -30 °C
  • Time, Bounce duration, maximum
    43221 ms
  • Time, Switchover time, maximum
    10 ms
  • Tightening torque, actuating torque
    0.20 Nm
  • Voltage, Rated impulse withstand voltage
    4 kV
  • Voltage, rated insulation voltage
    250 VAC
  • Voltage, Utilisation category AC-15
    230 VAC
  • Web Type
    Product range

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
