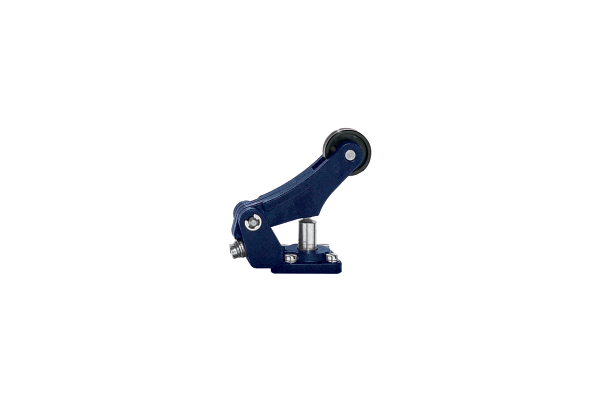

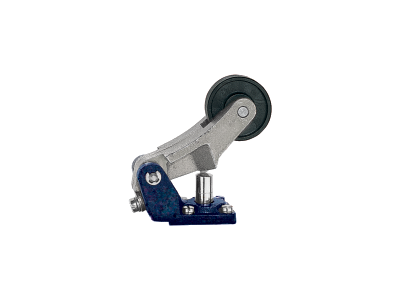

TK 452-21Y Position switch

TK 452-21Y
Metal enclosure

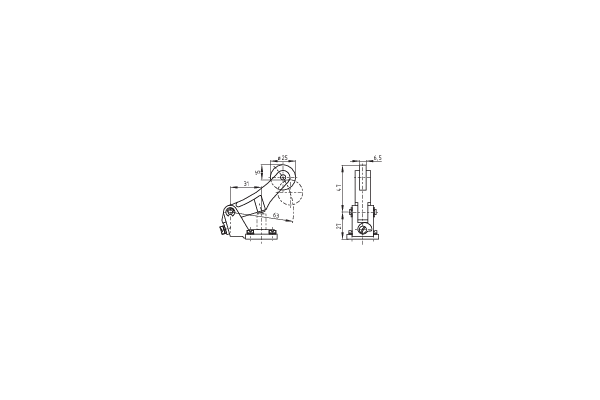

118 mm x 127 mm x 64 mm ( basic component)
Actuator heads can be repositioned by 4 x 90°
2 cable entries M 20 x 1.5
  • SKU
    4030661034508
  • Manufacturer code
    101059010
  • Current, Thermal test current
    16 A
  • Current, Utilisation category AC-15
    4 A
  • Type of Execution, Mechanical life, minimum,
    10000000 Operations
  • Switching principle
    Slow action
  • Electrical data, Max. fuse rating
    16 A gG D-fuse
  • Electrical data, Utilisation category
    AC-15
  • Material, contacts, electrical
    Silver
  • Housing material
    Grey cast iron, galvanised
  • Standard, standards
    EN IEC 60947-5-1
  • Number, NC contacts
    1
  • Number, NO contacts
    2
  • PIM maintenance status
    Discharge "Online catalog"
  • PNV, standard, certificates
    CCC
    DNV
  • Type of electric connection
    Screw terminals M20 x 1.5
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661034508
  • SAP, product group
    Initial
  • SAP, gross weight
    1793.000 g
  • SAP, net weight
    1793.000 g
  • Temperature, Ambient temperature[generated product variant]
    -30 ... +90 °C
  • Temperature, ambient temperature, maximum
    90 °C
  • Temperature, ambient temperature, minimum
    -30 °C
  • Voltage, Rated impulse withstand voltage
    6 kV
  • Web Type
    Product range
  • Actuating element
    Offset roller lever
  • Type of Execution, IP Protection class, General
    IP65
  • Type of design, Form, Slide
    Castor
  • Diameter, Wire cross-section, AWG
    13 AWG
  • Distance, Contact opening
    2 x 6 mm
  • Height, Sensor
    201 mm
  • Length, Sensor
    64 mm
  • Width, Sensor
    118 mm
  • Electrical data, Cable section, maximum
    2.5 mm²
  • Material, enclosure coating
    painted
  • Movement, actuating speed, maximum
    0.5 m/s
  • Movement, actuating speed, minimum
    1 mm/min
  • Note, Design, Switching element
    with double break
  • Note, Electrical Data, Cable section
    All indications including the conductor ferrules.
  • Note, General
    Actuation from the right should be avoided, since this reduc
  • Note, Motion, Actuating Speed
    Actuating speed with vertical actuating angle to switch axis
  • Type of switch function
    NO contact, NC contact
  • Voltage, rated insulation voltage
    400 V
  • Voltage, Utilisation category AC-15
    400 VAC
  • Actuating angle, from left of switch axis
    45 °
  • Actuating angle, from right of switch axis
    30 °
  • Diameter, Castor
    25 mm
  • Width, Castor
    6.5 mm
  • Material, Castor
    Plastic
  • Electrical data, Cable section, minimum
    1.5 mm²

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
