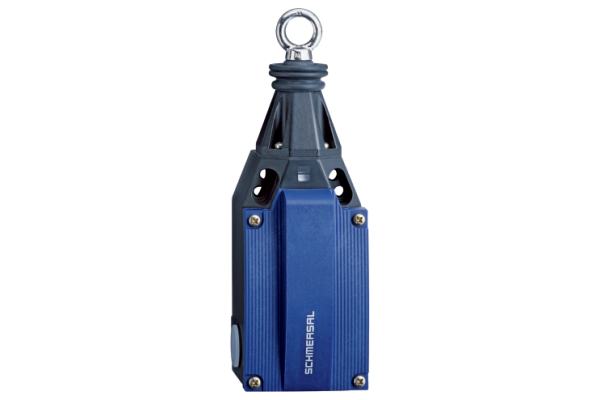

TQ 900-22 Pull-wire switch

TQ 900-22
3 cable entries M 20 x 1.5
Metal enclosure
one-side operation
wire up to 50 m long
Position indicator
Robust design
Large wiring compartment
Twisting of towing eye not possible
External watertight collar
  • SKU
    4030661332840
  • Manufacturer code
    101184479
  • Current, Thermal test current
    6 A
  • Type of Execution, IP Protection class, General
    IP65
    IP67
  • Type of Execution, Mechanical life, minimum,
    1000000 Operations
  • Switching principle
    Slow action
  • Electrical data, Cable section, maximum
    1 x 2.5 mm²
  • Electrical data, Max. fuse rating
    6 A gG D-fuse
  • Material, contacts, electrical
    Silver
  • Housing material
    Metal, zinc die-cast
  • Material, housing cover
    Glass-fibre, thermoplastic
  • Standard, standards
    EN IEC 60947-5-1
  • Note, Electrical Data, Cable section
    All indications including the conductor ferrules.
  • Number, NC contacts
    2
  • PIM maintenance status
    Discharge "Online catalog"
  • PNV, standard, certificates
    CCC
    TÜV
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661332840
  • SAP, product group
    HAWA: Electromechanical switchgear
  • SAP, gross weight
    1255.000 g
  • SAP, net weight
    1255.000 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +70 °C
  • Temperature, ambient temperature, maximum
    70 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Voltage, Rated impulse withstand voltage
    6 kV
  • Voltage, rated insulation voltage
    500 V
  • Electrical data, Utilisation category
    DC-13
    AC-15
  • Force, Actuating force, maximum
    200 N
  • Type of switch function
    NO contact, NC contact
  • Type of electric connection
    Screw terminals M20 x 1.5
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameter
    EN ISO 13849-1
  • Web Type
    Product range
  • Current, Utilisation category AC-15
    4 A
  • Current, Utilisation category DC-13
    1 A
  • Distance, Travel, Actuating travel
    400 mm
  • Height, Sensor[generated product variant]
    220.3 ... 236.3 mm
  • Height, Sensor, maximum
    236.3 mm
  • Height, Sensor, minimum,
    220.3 mm
  • Length, wire, maximum
    50 m
  • Length, wire, minimum
    5 m
  • Length, Sensor
    69.7 mm
  • Width, Sensor
    71.5 mm
  • Electrical data, Cable section, minimum
    0.75 mm²
  • Material, enclosure coating
    painted
  • Note, General
    For lengths of over 10 m, intermediate wire supports must be
    Recommended cable lengths for pull-wire Emergency-Stop switc
    As the thimbles are subject to deformation in case of wire p
    The screwed G24-M20 indicator lamp must be ordered separatel
  • Number, NO contacts
    2
  • Voltage, Utilisation category AC-15
    230 VAC
  • Voltage, Utilisation category DC-13
    24 VDC
  • Selection (Yes/No), CADENAS
    Yes
  • Selection (Yes/No), Indicator lamp
    Yes
  • Selection (Yes/No), Traceparts
    Yes
