Metal enclosure
Long life
40 mm x 76 mm x 40 mm ( basic component)
Suitable for low actuating speeds
1 Cable entry M 20 x 1.5
free of silicon
proved in power station applications
Actuator head can be repositioned in steps 4 x 90°

SKU

8905236106927
Manufacturer code

131158902
Current, Thermal test current

6 A
Current, Utilisation category AC-15

2.5 A
Electrical data, Max. fuse rating

6 A gG D-fuse
Material, contacts, electrical

Silver
Housing material

Light-alloy diecast, paint finish
Standard, standards

EN IEC 60947-5-1
PIM maintenance status

Discharge "Online catalog"
Review, restistance to shock

50 g / 6 ms
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

8905236106927
SAP, product group

HAWA: Electromechanical switchgear
SAP, gross weight

304.149 g
SAP, net weight

304.149 g
Temperature, ambient temperature, minimum

-30 °C
Time, Bounce duration, maximum

1.5 ms
Voltage, Rated impulse withstand voltage

4 kV
Web Type

Product range

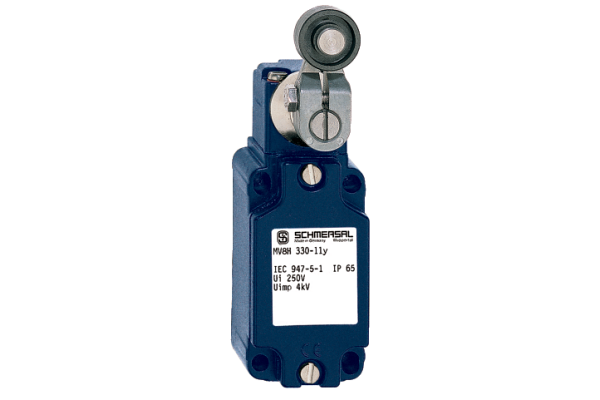

Actuating element

Roller lever
Type of Execution, IP Protection class, General

IP65
Type of design, Form, Slide

Castor
Diameter, Wire cross-section, AWG

13 AWG
Height, Sensor

129.5 mm
Length, Sensor

40 mm
Width, Sensor

40 mm
Material, enclosure coating

painted
Movement, actuating speed, minimum

1 mm/min
Voltage, rated insulation voltage

250 VAC
Voltage, Utilisation category AC-15

230 VAC
Diameter, Castor

20 mm
Width, Castor

8.5 mm
Tightening torque, actuating torque

0.505 Nm

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
