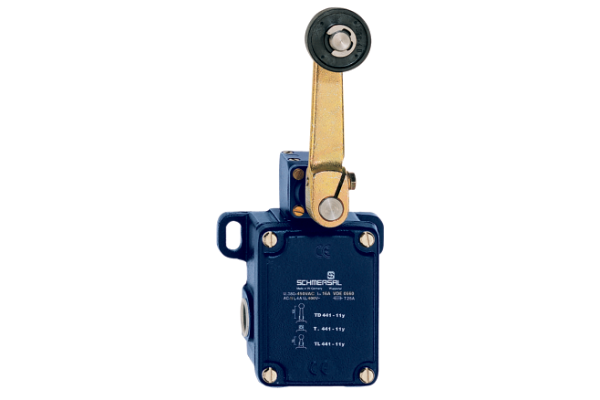

Aluminium enlosure
Actuator head can be repositioned in steps 4 x 90°
Continuous adjustment of lever position 360°
2 Contacts
Lever can be transposed by 180°
In temperature-resistant version, the roller can be mounted in two different positions on the shaft
106 mm x 99 mm x 63 mm (basic component)
Protection class IP65

SKU

4030661207445
Manufacturer code

101165102
Current, Thermal test current

16 A
Current, Utilisation category AC-15

4 A
Type of Execution, Mechanical life, minimum,

5000000 Operations
Switching principle

Snap action
Electrical data, Max. fuse rating

16 A gG D-fuse
Electrical data, Utilisation category

AC-15
Material, contacts, electrical

Silver
Housing material

Aluminium
Standard, standards

EN IEC 60947-5-1
Number, NC contacts

1
Number, NO contacts

1
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

CCC
DNV
Type of electric connection

Screw terminals M20 x 1.5
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661207445
SAP, product group

Initial
SAP, gross weight

990.000 g
SAP, net weight

990.000 g
Temperature, Ambient temperature[generated product variant]

-30 ... +90 °C
Temperature, ambient temperature, maximum

200 °C
Temperature, ambient temperature, minimum

-40 °C
Time, Bounce duration, maximum

5 ms
Voltage, Rated impulse withstand voltage

6 kV
Web Type

Product range
Actuating element

Roller lever
Type of Execution, IP Protection class, General

IP65
Type of design, Form, Slide

Castor
Diameter, Wire cross-section, AWG

13 AWG
Distance, Contact opening

2 x 2.5 mm
Height, Sensor

237 mm
Length, Sensor

63 mm
Width, Sensor

106 mm
Electrical data, Cable section, maximum

2.5 mm²
Material, enclosure coating

painted
Movement, actuating speed, maximum

3 m/s
Movement, actuating speed, minimum

1 mm/min
Note, Design, Switching element

galvanically separated contact bridges
Note, Electrical Data, Cable section

All indications including the conductor ferrules.
Note, Motion, Actuating Speed

Actuating speed with vertical actuating angle to switch axis
Type of switch function

NO contact, NC contact
Voltage, rated insulation voltage

400 V
Voltage, Utilisation category AC-15

250 VAC
Actuating angle, from left of switch axis

30 °
Actuating angle, from right of switch axis

30 °
Diameter, Castor

36 mm
Width, Castor

9 mm
Material, Castor

Brass
Electrical data, Cable section, minimum

1.5 mm²
Time, Switchover time, maximum

35 ms
Material, housing cover

Aluminium
