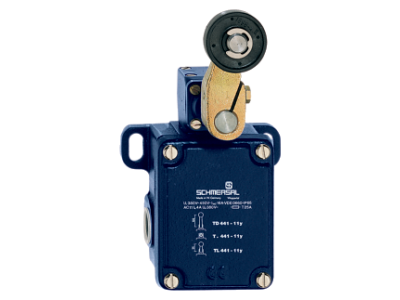

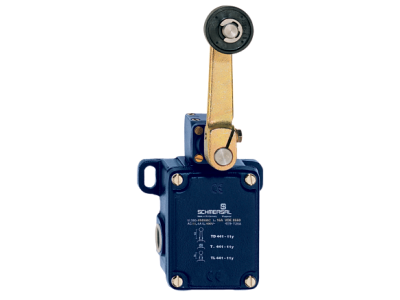

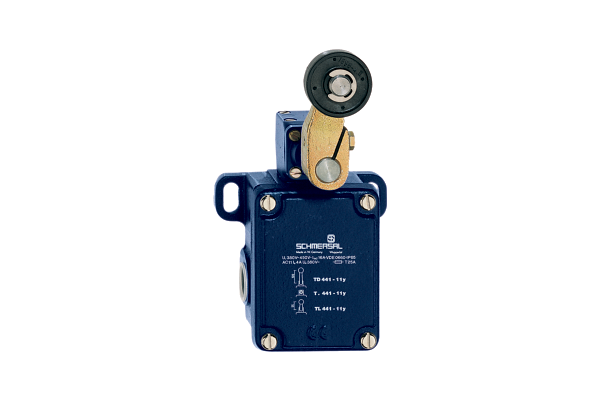

Actuator head can be repositioned in steps 4 x 90°
Metal enclosure
Continuous adjustment of lever position 360°
2 Contacts
Lever can be transposed by 180°
In temperature-resistant version, the roller can be mounted in two different positions on the shaft
106 mm x 99 mm x 63 mm (basic component)
Protection class IP65

SKU

4030661159089
Manufacturer code

101150792
Current, Thermal test current

16 A
Current, Utilisation category AC-15

4 A
Type of Execution, Mechanical life, minimum,

10000000 Operations
Switching principle

Slow action
Electrical data, Max. fuse rating

16 A gG D-fuse
Electrical data, Utilisation category

AC-15
Material, contacts, electrical

Gold-plated silver (AgNi 15 + Au 0,3µm)
Housing material

Grey cast iron, galvanised
Standard, standards

EN IEC 60947-5-1
Number, NC contacts

1
Number, NO contacts

1
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

CCC
Type of electric connection

Screw terminals M20 x 1.5
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661159089
SAP, product group

Initial
SAP, gross weight

1760.000 g
SAP, net weight

1760.000 g
Temperature, Ambient temperature[generated product variant]

-40 ... +200 °C
Temperature, ambient temperature, maximum

200 °C
Temperature, ambient temperature, minimum

-40 °C
Time, Bounce duration, maximum

5 ms
Voltage, Rated impulse withstand voltage

6 kV
Web Type

Product range
Actuating element

Roller lever
Type of Execution, IP Protection class, General

IP65
Type of design, Form, Slide

Castor
Diameter, Wire cross-section, AWG

13 AWG
Distance, Contact opening

2 x 2.5 mm
Height, Sensor

192 mm
Length, Sensor

63 mm
Width, Sensor

106 mm
Electrical data, Cable section, maximum

2.5 mm²
Material, enclosure coating

painted
Movement, actuating speed, maximum

3 m/s
Movement, actuating speed, minimum

1 mm/min
Note, Design, Switching element

with double break
Note, Electrical Data, Cable section

All indications including the conductor ferrules.
Note, Motion, Actuating Speed

Actuating speed with vertical actuating angle to switch axis
Type of switch function

NO contact, NC contact
Voltage, rated insulation voltage

250 VAC
Voltage, Utilisation category AC-15

250 VAC
Actuating angle, from left of switch axis

30 °
Actuating angle, from right of switch axis

30 °
Diameter, Castor

36 mm
Width, Castor

9 mm
Material, Castor

Brass
Electrical data, Cable section, minimum

1.5 mm²

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
