2 cable entries M 20 x 1.5
Metal enclosure
With latching end position
Actuator heads can be repositioned by 4 x 90°
Change in actuating direction by repositioning actuator head
2 Contacts
106 mm x 99 mm x 63 mm (basic component)
Case-hardened lever
Protection class IP65

SKU

4030661037103
Manufacturer code

101059676
Current, Thermal test current

16 A
Current, Utilisation category AC-15

4 A
Type of Execution, Mechanical life, minimum,

5000000 Operations
Switching principle

Snap action
Electrical data, Max. fuse rating

16 A gG D-fuse
Electrical data, Utilisation category

AC-15
Material, contacts, electrical

Silver
Housing material

Grey cast iron, galvanised
Standard, standards

EN IEC 60947-5-1
Number, NC contacts

1
Number, NO contacts

1
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

CCC
Type of electric connection

Screw terminals M20 x 1.5
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661037103
SAP, product group

Initial
SAP, gross weight

1524.794 g
SAP, net weight

1524.794 g
Temperature, Ambient temperature[generated product variant]

-30 ... +90 °C
Temperature, ambient temperature, maximum

90 °C
Temperature, ambient temperature, minimum

-30 °C
Time, Bounce duration, maximum

5 ms
Voltage, Rated impulse withstand voltage

4 kV
Web Type

Product range

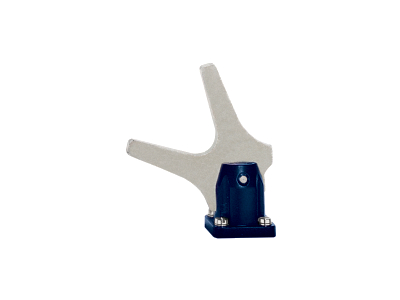

Actuating element

Fork lever
Type of Execution, IP Protection class, General

IP65
Diameter, Wire cross-section, AWG

13 AWG
Distance, Contact opening

2 x 2.5 mm
Height, Sensor

194 mm
Length, Sensor

63 mm
Width, Sensor

106 mm
Electrical data, Cable section, maximum

2.5 mm²
Material, enclosure coating

painted
Movement, actuating speed, maximum

0.5 m/s
Movement, actuating speed, minimum

1 mm/min
Note, Design, Switching element

galvanically separated contact bridges
Note, Electrical Data, Cable section

All indications including the conductor ferrules.
Note, Motion, Actuating Speed

Actuating speed with vertical actuating angle to switch axis
Type of switch function

NO contact, NC contact
Voltage, rated insulation voltage

250 VAC
Voltage, Utilisation category AC-15

250 VAC
Electrical data, Cable section, minimum

1.5 mm²
Time, Switchover time, maximum

35 ms
CAD, traceparts, product ID

33-22052019-077773
