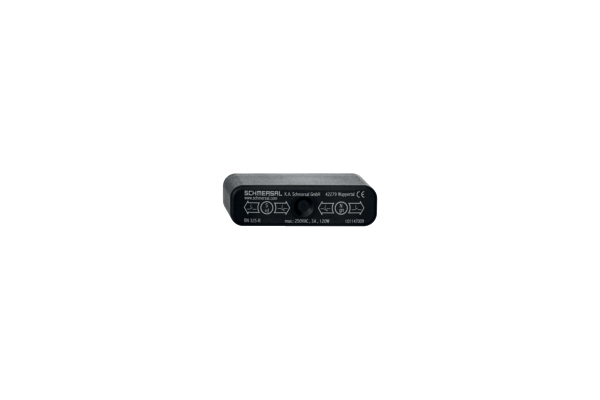

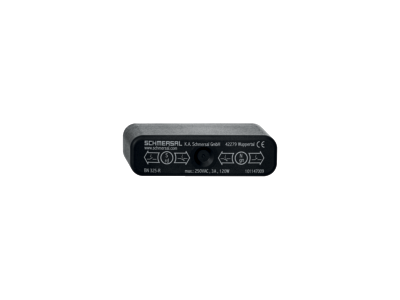

BN 325-R-1279-2 Magnetic Reed switch

BN 325-R-1279-2
Cable output right and 2 shielding plates
Actuation from front
Non-contact principle
1 Reed contakts
Long life
Actuating surface and direction of actuation marked by switch symbol

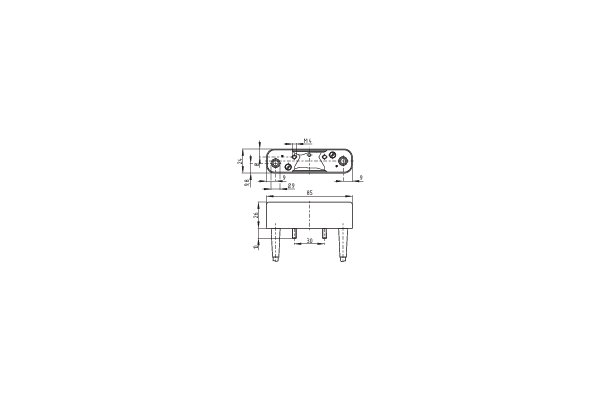

85 mm x 26 mm x 24 mm
Thermoplastic enclosure
Spade connector
  • SKU
    4030661145501
  • Manufacturer code
    101148084
  • Current, Switching current, maximum
    3 A
  • Type of execution, Actuating element
    Magnet
  • Construction type housing
    rectangular
  • Type of Execution, IP Protection class, General
    IP67
  • Type of Execution, Mechanical life, minimum,
    1000000000 Operations
  • Type of Execution, Switching output, Digital output, electric
    Reed contacts
  • Height, Sensor
    26 mm
  • Length, Sensor
    24 mm
  • Width, Sensor
    85 mm
  • Housing material
    Glass-fibre, reinforced thermoplastic
  • Note, General
    The opening and closing functions depend on the direction of
  • PIM maintenance status
    Discharge "Online catalog"
  • Power, switching capacity, maximum
    120 VA

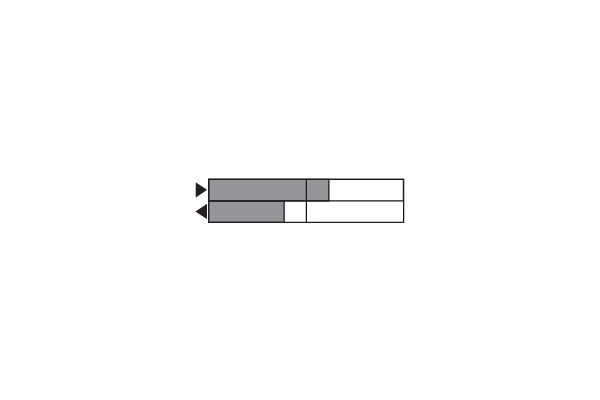

  • Type of switch function
    bistable contact
  • Type of electric connection
    Cable outlet right and 2 shielding plates
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661145501
  • SAP, product group
    Initial
  • SAP, gross weight
    95.000 g
  • SAP, net weight
    95.000 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +70 °C
  • Temperature, ambient temperature, maximum
    70 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Time, Bounce duration, maximum
    0.6 ms
  • Time, Bounce duration, minimum
    0.3 ms
  • Voltage, Switching voltage, VAC, maximum
    250 VAC
  • Web Type
    Product range
  • Type of application, Actuating panel
    front side
  • Type of execution, mounting
    rear with 2 threaded bolts
  • Distance, Repeat accuracy R R
    0.25 mm
  • Cable length
    1 m
  • Movement, actuating speed, maximum
    18 m/s
  • Notice, Switch distance Sn
    Actuating distance up to 55 mm depending on actuating magnet
  • Recommendation, actuator
    BP 10 S
    2x BP 10 S
    BP 15 S
    BP 34 S
    BP 20 S
    BP 31 S
    BP 11 S
    2x BP 11 S
    BP 12 S
    BP 21 S
    2x BP 21 S
    BP 10 N
    2x BP 10 N
    BP 15 N
    2 x BP 15/2 N
    2x BP 15/2 S
    BP 34 N
    BP 20 N
    BP 31 N
    BP 11 N
    2x BP 11 N
    BP 12 N
    2x BP 12 N
    2x BP 12 S
    BP 21 N
    2x BP 21 N
    BE 20
    BE 20 N(S) ST 24VDC
    BE 20 N(S) 48VDC
  • Recommendation, Actuator, Lift switchgear
    2 x BP 15/2
    BP 10
    BP 15
    2 x BP 10
    BP 34
  • Review, area, switch distance Sn
    5 mm … 55 mm
    2 x BP 21S = 20 ... 55 mm
    BP 34S = 10 ... 25 mm
    BE 20 = 20 mm
    BP 10N = 10 mm
    BP 10S = 10 mm
    2 x BP 10N = 15 mm
    2 x BP 10S = 15 mm
    BP 15N = 12 mm
    BP 15S = 12 mm
    2 x BP 15/2N = 17 mm
    2 x BP 15/2S = 17mm
    BP 34N = 10 ... 25mm
    BP 20N = 5 ... 20 mm
    BP 20S = 5 ... 20 mm
    BP 31N = 5 ... 20 mm
    BP 31S = 5 ... 20 mm
    BP 11N = 10 mm
    BP 11S = 10 mm
    2 x BP 11N = 20 mm
    2 x BP 11S = 20 mm
    BP 12N = 15 mm
    BP 12S = 15 mm
    2 x BP 12N = 10 ... 25 mm
    2 x BP 12S = 10 ... 25 mm
    BP 21N = 15 ... 40 mm
    BP 21S = 15 ... 40 mm
    2 x BP 21N = 20 ... 55 mm
    BE 20N = 15 mm
    BE 20S = 15 mm
  • Review, Resistance to vibrations to EN 60068-2-6
    10 … 55 Hz, amplitude 1 mm
  • Review, restistance to shock
    50 g / 11 ms
  • Included in delivery, number and type, general
    Actuator must be ordered separately.
  • Time, Switching frequency, maximum
    300 Hz
  • Selection (Yes/No),
    Yes
  • Number, Snap-in contacts
    1
  • Selection (Yes/No), latching
    Yes
