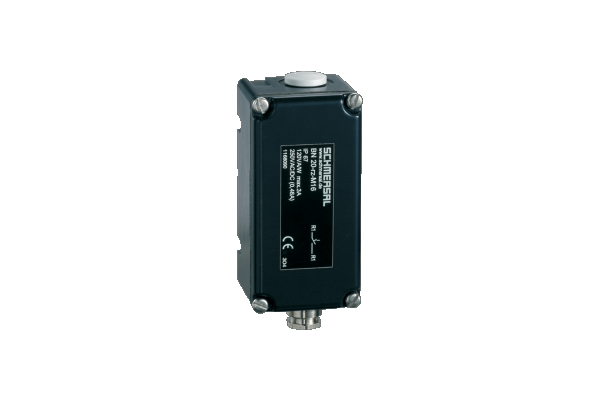

BN 20-2RZ-ST-2628 Magnetic Reed switch

BN 20-2RZ-ST-2628
Non-contact principle
Long life
104 mm x 52 mm x 47 mm
Aluminium enlosure
Actuating distance up to 50 mm depending on actuating magnet and version
Screw connection
Highly resistant to vibration
Available for actuation from front or side
  • SKU
    4030661361437
  • Manufacturer code
    101195530
  • Current, Switching current, maximum
    3 A
  • Type of execution, Actuating element
    Magnet
  • Construction type housing
    rectangular
  • Type of Execution, Mechanical life, minimum,
    1000000000 Operations
  • Type of Execution, Switching output, Digital output, electric
    Reed contacts
  • Height, Sensor
    52 mm
  • Length, Sensor
    47 mm
  • Width, Sensor
    104 mm
  • Material, active area
    Metal film
  • Housing material
    Aluminium
  • Note, General
    The opening and closing functions depend on the direction of
    When the switches and actuators come together, the colours m
  • PIM maintenance status
    Discharge "Online catalog"
  • Power, switching capacity, maximum
    120 VA
  • Power, switching capacity, maximum
    120 W
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661361437
  • SAP, product group
    Initial
  • SAP, gross weight
    292.000 g
  • SAP, net weight
    292.000 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +90 °C
  • Temperature, ambient temperature, maximum
    90 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Web Type
    Product range
  • Distance, Repeat accuracy R R
    0.25 mm
  • Movement, actuating speed, maximum
    18 m/s
  • Notice, Switch distance Sn
    Actuating distance up to 50 mm depending on version and actu
  • Recommendation, actuator
    BP 10 S
    2x BP 10 S
    BP 15 S
    BP 34 S
    BP 20 S
    BP 31 S
    BP 11 S
    2x BP 11 S
    BP 12 S
    BP 21 S
    2x BP 21 S
    BE 20 S
    BP 10 N
    2x BP 10 N
    BP 15 N
    2 x BP 15/2 N
    2x BP 15/2 S
    BP 34 N
    BP 20 N
    BP 31 N
    BP 11 N
    2x BP 11 N
    BP 12 N
    2x BP 12 N
    2x BP 12 S
    BP 21 N
  • Included in delivery, number and type, general
    Actuator must be ordered separately.
  • Time, Switching frequency
    1080000 /h
  • Selection (Yes/No), Bias magnet
    Yes
  • Number, Snap-in contacts
    2
  • Standard, standards
    EN IEC 60947-5-1
  • Selection (Yes/No), Traceparts
    Yes

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
