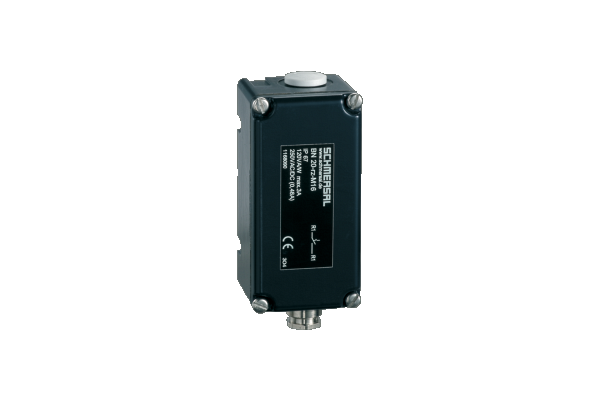

BN 20-02Z Magnetic Reed switch

BN 20-02Z
2 reed contacts
Non-contact principle
Long life
104 mm x 52 mm x 47 mm
Aluminium enlosure
Actuating distance up to 50 mm depending on actuating magnet and version
Screw connection
Highly resistant to vibration
Available for actuation from front or side
  • SKU
    4030661022864
  • Manufacturer code
    101057005
  • Current, Switching current, maximum
    3 A
  • Type of execution, Actuating element
    Magnet
  • Construction type housing
    rectangular
  • Type of Execution, IP Protection class, General
    IP67
  • Type of Execution, Mechanical life, minimum,
    1000000000 Operations
  • Type of Execution, Switching output, Digital output, electric
    Reed contacts
  • Height, Sensor
    52 mm
  • Length, Sensor
    47 mm
  • Width, Sensor
    104 mm
  • Material, active area
    Metal film
  • Housing material
    Aluminium
  • Note, General
    The opening and closing functions depend on the direction of
    When the switches and actuators come together, the colours m
  • Number, NC contacts
    2
  • PIM maintenance status
    Discharge "Online catalog"
  • Power, switching capacity, maximum
    120 VA
  • Power, switching capacity, maximum
    120 W
  • Type of switch function
    Opener (NC)
  • Type of electric connection
    Screw terminals M20 x 1.5
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661022864
  • SAP, product group
    Initial
  • SAP, gross weight
    325.990 g
  • SAP, net weight
    325.990 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +90 °C
  • Temperature, ambient temperature, maximum
    90 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Time, Bounce duration, maximum
    0.6 ms
  • Time, Bounce duration, minimum
    0.3 ms
  • Voltage, Switching voltage, VAC, maximum
    250 VAC
  • Web Type
    Product range
  • Type of application, Actuating panel
    lateral
  • Distance, Repeat accuracy R R
    0.25 mm
  • Movement, actuating speed, maximum
    18 m/s
  • Notice, Switch distance Sn
    Actuating distance up to 45 mm depending on version and actu
  • Recommendation, actuator
    2x BP 10
    2x BP 15/2
    BP 20
    BP 31
    BP 11
    BP 12
    BP 21 N
    BE 20
  • Review, area, switch distance Sn
    BP 11 = 15 mm
    12 mm … 45 mm
    2 x BP 10 = 12 mm
    2 x BP 15/2 = 12 mm
    BP 20 = 15 mm
    BP 31 = 15 mm
    BP 12 = 25 mm
    BP 21N = 20 ... 45 mm
    BE 20 = 15 mm
  • Included in delivery, number and type, general
    Actuator must be ordered separately.
  • Time, Switching frequency
    1080000 /h
  • Selection (Yes/No), Bias magnet
    Yes
  • Type of Execution, Active area
    lateral
  • Standard, standards
    EN IEC 60947-5-1
  • Selection (Yes/No), Traceparts
    Yes

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
