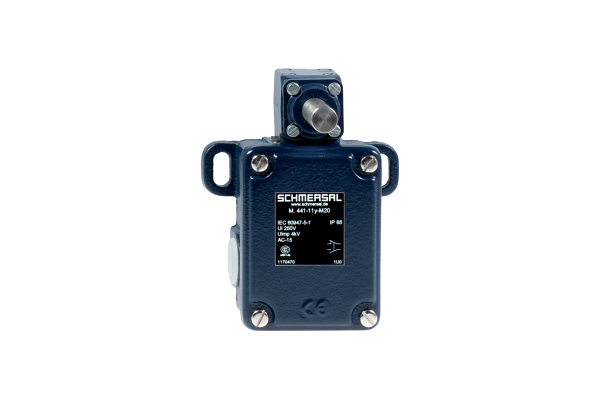

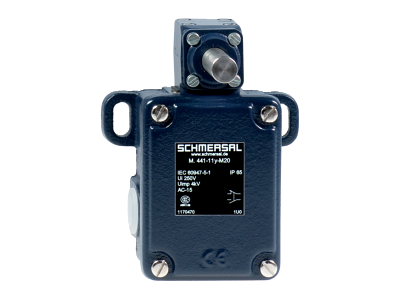

Metal enclosure
2 Contacts
106 mm x 99 mm x 63 mm ( basic component)
Suitable for heavy duty

SKU

4030661297774
Manufacturer code

101170473
Current, Thermal test current

16 A
Current, Utilisation category AC-15

4 A
Type of Execution, IP Protection class, General

IP65
Type of Execution, Mechanical life, minimum,

10000000 Operations
Switching principle

Snap action
Distance, Contact opening

2 x 6 mm
Height, Sensor

99 mm
Length, Sensor

63 mm
Width, Sensor

106 mm
Electrical data, Cable section, maximum

2.5 mm²
Electrical data, Cable section, minimum

1.5 mm²
Electrical data, Max. fuse rating

16 A gG D-fuse
Electrical data, Utilisation category

AC-15
Material, contacts, electrical

Silver
Housing material

Grey cast iron, galvanised
Material, enclosure coating

painted
Standard, standards

EN IEC 60947-5-1
Number, NC contacts

1
Number, NO contacts

1
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

CCC
Type of switch function

NO contact, NC contact
Type of electric connection

Screw terminals M20 x 1.5
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661297774
SAP, product group

Initial
SAP, gross weight

1440.000 g
SAP, net weight

1440.000 g
Temperature, Ambient temperature[generated product variant]

-40 ... +200 °C
Temperature, ambient temperature, maximum

200 °C
Temperature, ambient temperature, minimum

-40 °C
Time, Switching frequency

3000 /h
Voltage, Rated impulse withstand voltage

4 kV
Voltage, rated insulation voltage

250 VAC
Voltage, Utilisation category AC-15

230 VAC
Web Type

Product range
Type of application, Actuating direction

each time 60° right-hand side and left-hand side rotation
Material, Castor

Brass
