Thermoplastic enclosure
Changeover contact with double break, positive break
galvanically separated contact bridges
Screw connection

SKU

4030661100456
Manufacturer code

101113330
Current, Thermal test current

10 A
Type of Execution, IP Protection class, General

IP40
Switching principle

Snap action
Electrical data, Utilisation category

AC-15
Material, contacts, electrical

Silver
Housing material

Glass-fibre, reinforced thermoplastic
Standard, standards

EN IEC 60947-5-1
Number, NC contacts

1
Number, NO contacts

1
PIM maintenance status

Discharge "Online catalog"
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661100456
SAP, product group

Initial
SAP, gross weight

23.771 g
SAP, net weight

23.771 g
Temperature, Ambient temperature[generated product variant]

-30 ... +80 °C
Temperature, ambient temperature, maximum

80 °C
Temperature, ambient temperature, minimum

-30 °C
Current, Utilisation category AC-15

4 A
Type of Execution, for degree of pollution VDE 0100

3
Type of Execution, IP Protection class, clips or terminals

IP00 (without connector)
Type of Execution, Mechanical life, minimum,

20000000 Operations
Electrical data, Max. fuse rating

6 A gL/gG D-fuse
Force, Actuating force

9 N
Material, actuator

Stainless steel
Voltage, Rated impulse withstand voltage

6 kV
Voltage, Utilisation category AC-15

230 VAC
Type of Execution, Terminals, mechanical

Screw connection
Electrical data, Cable section, maximum

2.5 mm²
Movement, actuating speed

10 mm/min
Selection (Yes/No), Traceparts

Yes

Cart

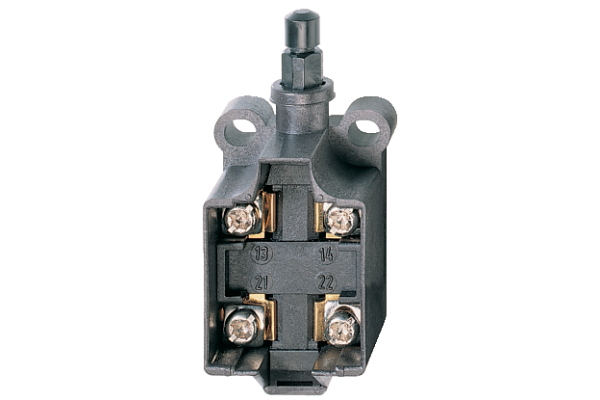

ZS 232-11 BASE KPL. Micro switch
