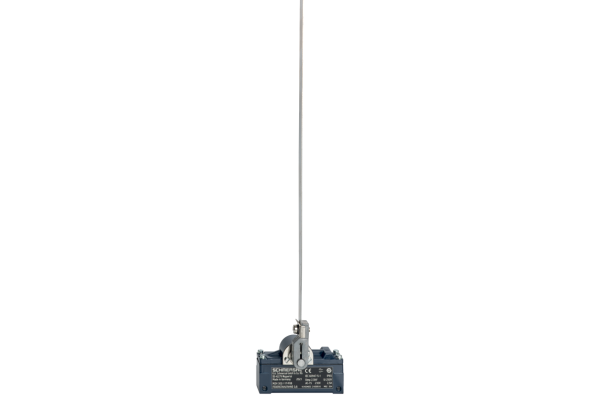

M2H 302-11Y-F08 SPRING STEEL FLAG 0.8 Micro switch

M2H 302-11Y-F08 SPRING STEEL FLAG 0.8
with leaf spring lever form 2H and lug made of spring steel Ø 0.8 mm
Connector M16 x 1.5
Microswitch, cast encapsulated
oil and gasoline resistant
  • SKU
    4030661001043
  • Manufacturer code
    101054653
  • Current, Thermal test current
    6 A
  • Type of Execution, IP Protection class, General
    IP65
  • Switching principle
    Snap action with self-cleaning contact
  • Electrical data, Utilisation category
    AC-11
  • Material, contacts, electrical
    Silver
  • Housing material
    Light alloy die-casting
  • Material, enclosure coating
    painted
  • Standard, standards
    DIN VDE 0660-200
  • Number, NC contacts
    1
  • Number, NO contacts
    1
  • PIM maintenance status
    Discharge "Online catalog"
  • Type of electric connection
    Screw connection M16x1.5
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661001043
  • SAP, product group
    Initial
  • SAP, gross weight
    184.154 g
  • SAP, net weight
    184.154 g
  • Temperature, Ambient temperature[generated product variant]
    -30 ... +90 °C
  • Temperature, ambient temperature, maximum
    90 °C
  • Temperature, ambient temperature, minimum
    -30 °C
  • Voltage, operating voltage
    250 V
  • Voltage, rated operating voltage
    250 VAC
  • Voltage, type
    AC
  • Web Type
    Product range
