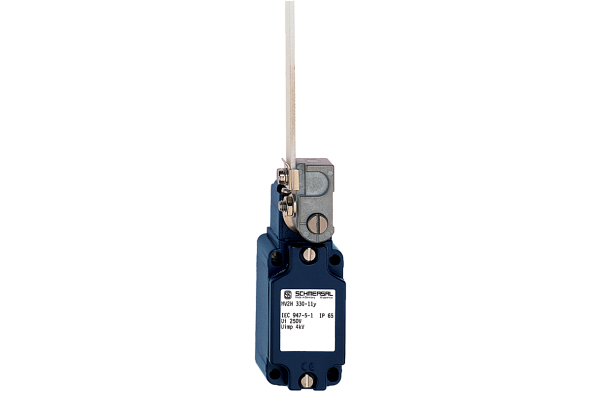

MV2H 330-11Y FAHNE 2,5MM Position switch

MV2H 330-11Y FAHNE 2,5MM
Metal enclosure
Long life
40 mm x 76 mm x 40 mm ( basic component)
Suitable for low actuating speeds
1 Cable entry M 20 x 1.5
free of silicon
proved in power station applications
Actuator head can be repositioned in steps 4 x 90°
Continuous adjustment of lever position 360°
Lever can be transposed by 180°
Epoxy-resin leaf spring
  • SKU
    8905236106521
  • Manufacturer code
    131057633
  • Current, Thermal test current
    6 A
  • Current, Utilisation category AC-15
    2.5 A
  • Electrical data, Max. fuse rating
    6 A gG D-fuse
  • Material, contacts, electrical
    Silver
  • Housing material
    Light-alloy diecast, paint finish
  • Standard, standards
    EN IEC 60947-5-1
  • PIM maintenance status
    Discharge "Online catalog"
  • Review, restistance to shock
    50 g / 6 ms
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    8905236106521
  • SAP, product group
    HAWA: Electromechanical switchgear
  • SAP, gross weight
    605.666 g
  • SAP, net weight
    605.666 g
  • Temperature, Ambient temperature[generated product variant]
    -30 ... +90 °C
  • Temperature, ambient temperature, maximum
    90 °C
  • Temperature, ambient temperature, minimum
    -30 °C
  • Time, Bounce duration, maximum
    1.5 ms
  • Voltage, Rated impulse withstand voltage
    4 kV
  • Web Type
    Product range
  • Actuating element
    Swivel lever
  • Type of Execution, IP Protection class, General
    IP65
  • Diameter, Wire cross-section, AWG
    13 AWG
  • Height, Sensor
    407.5 mm
  • Length, Sensor
    40 mm
  • Width, Sensor
    40 mm
  • Material, enclosure coating
    painted
  • Movement, actuating speed, minimum
    1 mm/min
  • Voltage, rated insulation voltage
    250 VAC
  • Voltage, Utilisation category AC-15
    230 VAC
  • Selection (Yes/No), Traceparts
    Yes
  • Tightening torque, actuating torque
    0.505 Nm
  • Material, lever
    Epoxy resin
  • Review, general dimensions (length, width, height, etc.)
    Leaf spring thickness: 2.5 mm
  • Selection (Yes/No), CADENAS
    Yes

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
