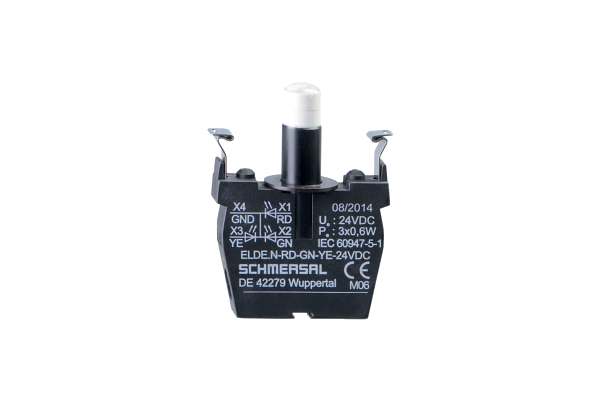

ELDE.N-RD-GN-YE-24VDC Push button

ELDE.N-RD-GN-YE-24VDC
3 colour LED module red
green
yellow
Screw connection
Mounting flange position 3
24
  • SKU
    4030661469379
  • Manufacturer code
    103007951
  • Type of Execution, construction form
    With integrated LED
  • Type of execution
    LED module
  • Standard, standards
    EN IEC 60947-5-1
    EN IEC 60947-1
  • PIM maintenance status
    Discharge "Online catalog"
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661469379
  • SAP, product group
    Initial
  • SAP, gross weight
    23.000 g
  • SAP, net weight
    23.000 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +75 °C
  • Temperature, ambient temperature, maximum
    75 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Web Type
    Product range
  • PNV, standard, certificates
    cULus
    CCC
  • Type of Execution, Terminals, mechanical
    arbitrarily
  • Selection (Yes/No), Integral System Diagnostics, general
    Yes
  • Type of application, Installation instructions
    pluggable
  • Type of Execution, IP Protection class, clips or terminals
    IP20
  • Design, Position, Mounting flange
    3
  • Depth, General
    60 mm
  • Length, General
    46 mm
  • Width, General
    10 mm
  • Electrical data, Cable section, maximum
    2.5 mm², rigid
    1.5 mm², flexible
  • Electrical data, Cable section, minimum
    0.5 mm², rigid
    0.5 mm², flexible
  • Electrical data, Contact labelling
    X1 - X2
  • Type of electric connection
    Screw terminals
  • Housing material
    Plastic, glass-fibre reinforced thermoplastic, self-extingui
  • Voltage, rated operating voltage
    24 VDC
  • Selection (Yes/No), Traceparts
    Yes
  • Type of application, Terminal designation
    EN 50005
    EN 50013
  • Colour of the LED
    Red
    Green
    Yellow
  • Voltage, rated insulation voltage
    400 V
  • Voltage, type
    DC
  • Voltage, rated operating voltage
    24 VDC
  • Voltage, Rated impulse withstand voltage
    4 kV

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal

Product attachments

file-27567-b5f5a8f316c8b5a828f64d67438d3d92.pdf (PDF, 198.05 kB)
