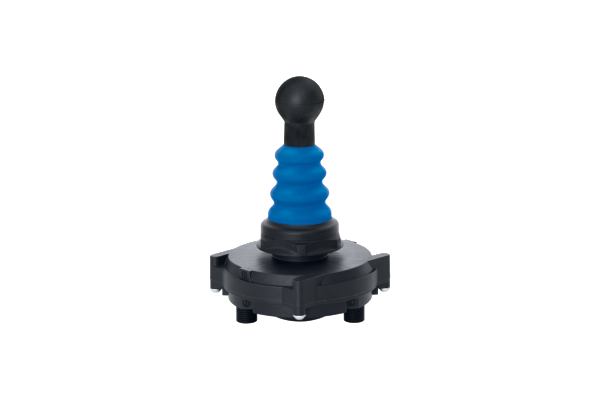

NK-T-42-2ST8-2 Joystick

NK-T-42-2ST8-2
Spring-return joystick switches
Mounting hole 22.3 mm
Mounting Knurled nut
up to 6 mm front plate thickness
Suitable for food processing industry
  • SKU
    4030661490304
  • Manufacturer code
    103012432
  • Colour of the front ring
    Black
  • Colour of the bellows
    Blue
  • Type of Execution, Terminals, mechanical
    arbitrarily
  • Type of Execution, Mechanical life, minimum,
    1000000 Operations
  • Mounting method
    central nut SW41
  • Switching principle
    Reed contacts, Non-contact principle
  • Depth, Installation
    30 mm
  • Diameter, hole, mounting diameter
    22.3 mm
  • Diameter, Installation to IEC/EN 60947-1
    22.3 + 0.4 mm
  • Distance, Grid dimensions [mm]
    90 x 90 mm
  • Length, Actuator
    85 mm
  • Material thickness, sealing bellows
    1.5 mm
  • Thickness, Front panel, maximum
    6 mm
  • Thickness, Front panel, minimum
    1.5 mm
  • Electrical data, Max. fuse rating
    0.5 A
  • Electrical data, Utilisation category
    DC-12
  • Force, actuating force, approx.
    11 N
  • Material, front ring
    Plastic
  • Material, bellows
    Silicone
  • Standard, standards
    EN IEC 60947-5-1
    EN IEC 60947-1
  • Number, Directions
    4
  • PIM maintenance status
    Discharge "Online catalog"
  • PNV, standard, certificates
    cULus
    BG
  • Type of electric connection
    Connector M12, 8-pole
  • Review, restistance to shock
    30 g / 11 ms
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661490304
  • SAP, product group
    Initial
  • SAP, gross weight
    160.000 g
  • SAP, net weight
    160.000 g
  • Temperature, Ambient temperature[generated product variant]
    -40 ... +80 °C
  • Temperature, ambient temperature, maximum
    80 °C
  • Temperature, ambient temperature, minimum
    -40 °C
  • Time, Switching frequency
    1200 /h
  • Tolerance, absolute
    0.4
  • Voltage, Rated impulse withstand voltage
    0.5 kV
  • Voltage, rated insulation voltage
    30 V
  • Web Type
    Product range
  • Selection (yes/no), External applications
    Yes
  • Selection (Yes/No), Probing possible
    Yes
  • Selection (Yes/No), Return to zero position
    Yes
  • Current, Rated operating current
    300 mA
  • Current, Utilisation category DC-12
    0.3 A
  • Type of Execution, for degree of pollution VDE 0100
    2
  • Type of Execution, IP Protection class, Contact element
    IP67
  • Type of Execution, IP Protection class, Front panel
    IP67
    IP69
  • Design, Mechanical Life, Touch positions, For each position
    500000 Operations
  • Angle, Switching angle
    20 °
  • Material, operators
    Plastic
  • Note, Depth, Installation
    Plus connectors
  • Note, Number, Touch positions
    Position A, B, C, D
  • Number, touch positions
    4
  • Number, Terminals, mechanical
    2
  • Power, switching capacity, maximum
    7.2 W
  • Voltage, Utilisation category DC-12
    30 VDC
  • Selection (Yes/No), Sealing element, Additional
    Yes
  • Selection (Yes/No), Traceparts
    Yes

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
