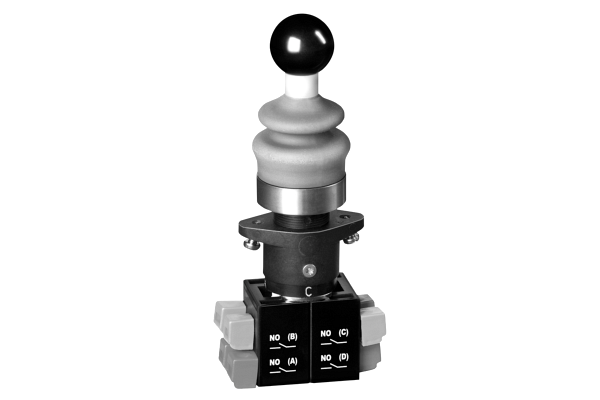

MKSA32 Joystick

MKSA32
without Locking sleeve
2 Contacts
Mounting depth 70 mm
2 switch position
Mounting hole 22.3 mm
Mounting Knurled nut
up to 6 mm front plate thickness
  • SKU
    4030661615363
  • Manufacturer code
    101005813
  • Colour of the front ring
    Silver
  • Colour of the bellows
    Black
  • Current, Thermal test current
    10 A
  • Current, Utilisation category AC-15
    8 A
  • Current, Utilisation category DC-13
    5 A
  • Type of Execution, Degree of pollution IEC/EN 60947-1
    3
  • Type of Execution, Terminals, mechanical
    arbitrarily
  • Type of Execution, IP Protection class, General
    IP67
    IP65
  • Latching position
    right
    left
  • Type of Execution, Mechanical life, minimum,
    1000000 Operations
  • Mounting method
    Knurled nut
  • Switching principle
    Slow action
  • Depth, Installation
    70 mm
  • Diameter, hole, mounting diameter
    22.3 mm
  • Diameter, Installation to IEC/EN 60947-1
    22.3 + 0.4 mm
  • Distance, Grid dimensions [mm]
    80 x 80 mm
  • Length, Actuator
    77 mm
  • Material thickness, sealing bellows
    1 mm
  • Thickness, Front panel, maximum
    6 mm
  • Thickness, Front panel, minimum
    1.5 mm
  • Electrical data, Cable section, maximum
    2.5 mm²
  • Electrical data, Cable section, minimum
    0.5 mm²
  • Electrical data, Max. fuse rating
    10 A gG D-fuse
  • Electrical data, Utilisation category
    DC-13
    AC-15
  • Force, actuating force, approx.
    11 N
  • Material, front ring
    Aluminium - anodised
  • Material, bellows
    Rubber
  • Standard, standards
    EN IEC 60947-5-1
    EN IEC 60947-1
  • Note, Electrical Data, Cable section
    All indications including the conductor ferrules.
  • Note, Number, Switch positions
    Position A, B
  • Auxiliary contacts
    2
  • Number, Directions
    2
  • Number, NO per direction
    1
  • Switch positions
    2
  • Number, Switching stages
    2
  • PIM maintenance status
    Discharge "Online catalog"
  • PNV, standard, certificates
    cURus
  • Type of switch function
    NO/NO contact
  • Type of electric connection
    Screw terminals M20 x 1.5
  • Review, Resistance to vibrations to EN 60068-2-6
    10 … 200 Hz, with 20 g
  • Review, restistance to shock
    110 g / 4 ms - 30 g / 18 ms
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661615363
  • SAP, product group
    Initial
  • SAP, gross weight
    123.754 g
  • SAP, net weight
    123.754 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +80 °C
  • Temperature, ambient temperature, maximum
    80 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Time, Switching frequency
    1200 /h
  • Tolerance, absolute
    0.4
  • Voltage, Rated impulse withstand voltage
    4 kV
  • Voltage, rated insulation voltage
    400 V
  • Voltage, Utilisation category AC-15
    250 VAC
  • Voltage, Utilisation category DC-13
    24 VDC
  • Web Type
    Product range
  • Selection (yes/no), External applications
    Yes
  • Selection (Yes/No), galvanically separated contact bridges
    Yes
  • Selection (Yes/No), latching
    Yes
