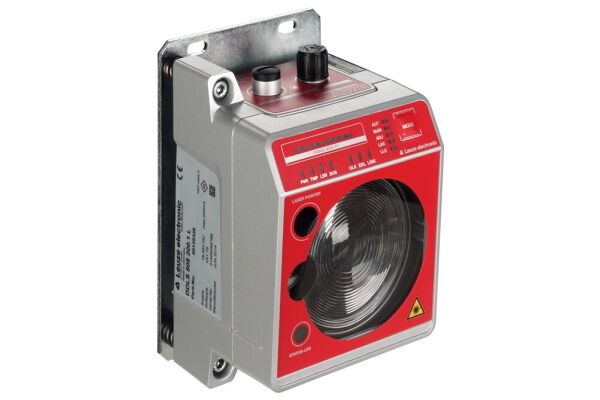

This product is designed for optical data transmission with a pre-mounted mounting plate. It features parallel light axis operation, an integrated laser alignment aid, and is unaffected by reflective surfaces. It supports Ethernet and PROFINET interfaces and offers a robust build for various applications.

SKU

2110-50132928
Manufacturer code

50132928
Ethernet

true
Bus type

Other
Flush-mounted installation

false
Suitable for wall mounting

true
Suitable for DIN rail (top hat rail) mounting

false
Socket outlet adapter

false
Height

156 mm
Width

100 mm
Depth

99.5 mm
Most suitable applications

Optical data transmission over long distances Environments with reflective surfaces
Special version

Operation of parallel light axes
Integrated laser alignment aid
Not influenced by reflective surfaces
Supply voltage

18 ... 30
Voltage type

DC
Ambient temperature

-5 ... 50
Interface

EtherNet TCP/IP
PROFINET
Working range (mm)

100 ... 120000
Pre-mounted

Mounting plate

Manufacturer Leuze
