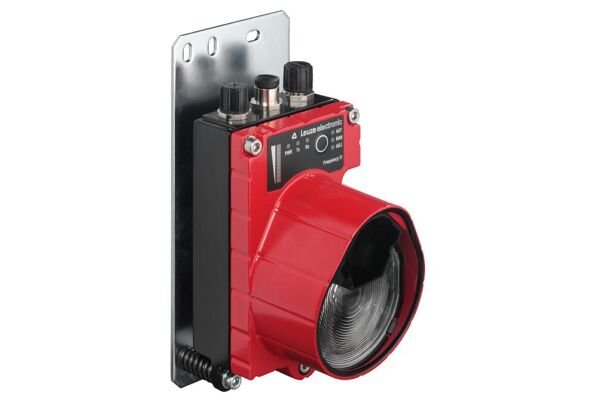

This product is a wide-angle optical data transmission device that operates over parallel light axes and is unaffected by reflective surfaces. It is pre-mounted on a mounting plate and supports CANopen and DeviceNet interfaces.

SKU

2110-50122267
Manufacturer code

50122267
Ethernet

false
Bus type

Other
Flush-mounted installation

false
Suitable for wall mounting

true
Suitable for DIN rail (top hat rail) mounting

false
Socket outlet adapter

false
Height

196.5 mm
Width

89.25 mm
Depth

111.8 mm
Most suitable applications

Optical data transmission over long distances.
Special version

Operation of parallel light axes
Wide angle version
Not influenced by reflective surfaces
Supply voltage

18 ... 30
Voltage type

DC
Ambient temperature

-5 ... 50
Interface

CANopen
DeviceNet
Working range (mm)

200 ... 80000
Pre-mounted

Mounting plate

Manufacturer Leuze
