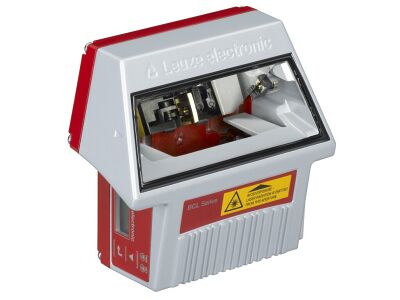

BCL 338i O L 100 D H F007

Stationary barcode reader with heating functionality, featuring code fragment technology, alignment mode, and various automated controls. It supports an oscillating-mirror scanner with a scanning rate of 1,000 scans/s and a reading distance of 80 to 680 mm.

SKU

2110-50141867
Manufacturer code

50141867
Type of electric connection

Plug-in connection
Operation agent-safety class

Safety class 3
Width sensor

125 mm
Height of sensor

58 mm
Length of sensor

110 mm
With configurable message output

true
Laser protection class

Class 1
Ambient temperature

-35 - 40 °C
Rated control supply voltage DC

18 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
With alert field output

false
Wavelength of the sensor

655 nm
With restart blockage

false
Suitable for safety functions

false
Scanning interval

10 Hz
Supplyoltage (V)

18 ... 30
Ambient temperature

-35 ... 40
Type of interface

EtherCAT
USB 2.0
Reading method

Oscillating-mirror scanner
Light beam exit

Zero position at side at angle less than 90°
Display

LED, Monochromatic
Operational controls

Button(s)
Special version

Heating

Manufacturer Leuze

Product attachments

DS_BCL-338i-O-L-100-D-H-F007_eng_50141867 (LINK)
