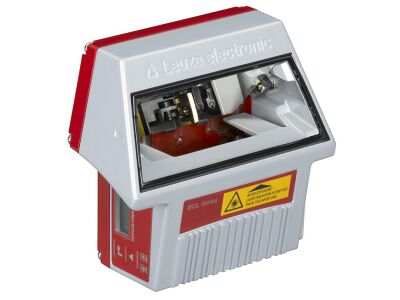

BCL 308i OL 100 Stationary bar code reader

BCL 308i OL 100
This stationary barcode reader features automatic control functions, alignment mode, and code fragment technology. It offers a typical scanning rate of 1,000 scans per second and can read from distances of 80 to 680 mm using an oscillating-mirror scanning method. The device supports Ethernet and USB 2.0 interfaces and operates efficiently within a 0 to 40 °C temperature range.
  • SKU
    2110-50116371
  • Manufacturer code
    50116371
  • Type of electric connection
    Plug-in connection
  • Operation agent-safety class
    Safety class 3
  • Width sensor
    125 mm
  • Height of sensor
    58 mm
  • Length of sensor
    110 mm
  • With configurable message output
    true
  • Laser protection class
    Class 1
  • Ambient temperature
    0 - 40 °C
  • Rated control supply voltage DC
    18 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • With alert field output
    false
  • Wavelength of the sensor
    655 nm
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Scanning interval
    10 Hz
  • Supplyoltage (V)
    18 ... 30
  • Ambient temperature
    0 ... 40
  • Type of interface
    Ethernet
    USB 2.0
  • Reading method
    Oscillating-mirror scanner
  • Light beam exit
    Zero position at side at angle less than 90°
  • Display
    LED
  • Manufacturer Leuze

Product attachments

DS_BCL-308i-OL-100_eng_50116371 (LINK)
