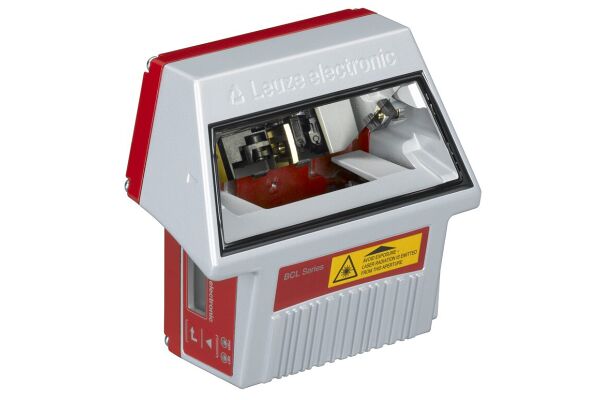

This stationary barcode reader features advanced functions like alignment mode and AutoConfig, with a scanning rate of 1,000 scans per second. It supports a reading distance of 80 to 680 mm and uses an oscillating-mirror scanner. The device has a monochromatic LED display and is suitable for various industrial applications.

SKU

2110-50141864
Manufacturer code

50141864
Type of electric connection

Plug-in connection
Operation agent-safety class

Safety class 3
Width sensor

125 mm
Height of sensor

58 mm
Length of sensor

110 mm
With configurable message output

true
Laser protection class

Class 1
Ambient temperature

0 - 40 °C
Rated control supply voltage DC

18 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
With alert field output

false
Wavelength of the sensor

655 nm
With restart blockage

false
Suitable for safety functions

false
Scanning interval

10 Hz
Supplyoltage (V)

18 ... 30
Ambient temperature

0 ... 40
Type of interface

EtherCAT
USB 2.0
Reading method

Oscillating-mirror scanner
Light beam exit

Zero position at side at angle less than 90°
Display

LED, Monochromatic
Most suitable applications

Industrial automation Logistics and warehouses Retail environments
Operational controls

Button(s)
