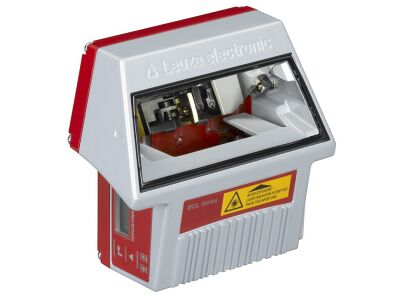

This stationary barcode reader features a heating function, various operational modes, and a monochromatic graphic display. It supports EtherCAT and USB 2.0 interfaces and operates efficiently in cold environments.

SKU

2110-50141830
Manufacturer code

50141830
Type of electric connection

Plug-in connection
Operation agent-safety class

Safety class 3
Width sensor

95 mm
Height of sensor

44 mm
Length of sensor

68 mm
With configurable message output

true
Laser protection class

Class 1
Ambient temperature

-35 - 40 °C
Rated control supply voltage DC

18 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
With alert field output

false
Wavelength of the sensor

655 nm
With restart blockage

false
Suitable for safety functions

false
Supplyoltage (V)

18 ... 30
Ambient temperature

-35 ... 40
Type of interface

EtherCAT
USB 2.0
Reading method

Line scanner
Light beam exit

Front
Display

LED, Monochromatic
Most suitable applications

Industrial settings requiring reliable barcode scanning in low temperatures
Operational controls

Button(s)
Special version

Heating
