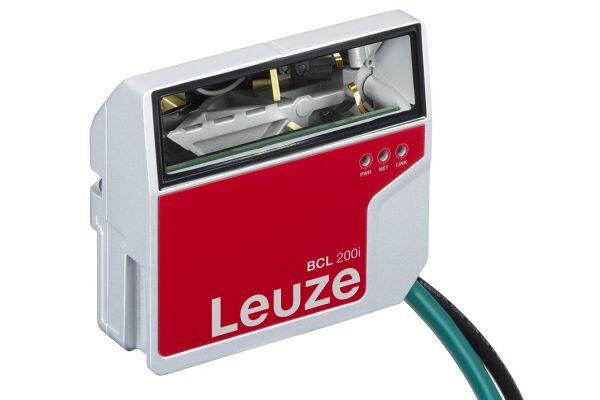

BCL 208i SM 110 Stationary bar code reader

BCL 208i SM 110
This stationary barcode reader offers features such as AutoReflAct, alignment mode, AutoConfig, AutoControl, and code fragment technology. It includes a LED indicator and reference code comparison for enhanced usability.
  • SKU
    2110-50143209
  • Manufacturer code
    50143209
  • Type of electric connection
    Cable with connector
  • Operation agent-safety class
    Safety class 3
  • Width sensor
    93 mm
  • Height of sensor
    38 mm
  • Length of sensor
    83 mm
  • With configurable message output
    true
  • Laser protection class
    Class 1
  • Ambient temperature
    0 - 40 °C
  • Rated control supply voltage DC
    18 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • With alert field output
    false
  • Wavelength of the sensor
    655 nm
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Number of semiconductor outputs with signalling function
    1
  • Supplyoltage (V)
    18 ... 30
  • Ambient temperature
    0 ... 40
  • Type of interface
    Ethernet
  • Reading method
    Line scanner with deflecting mirror
  • Light beam exit
    Lateral with deflecting mirror
  • Display
    LED
  • Manufacturer Leuze

Product attachments

DS_BCL-208i-SM-110_eng_50143209 (LINK)
