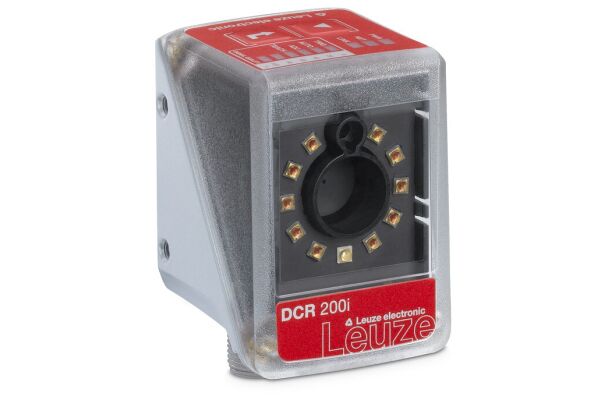

DCR 202i FIX-N1-102-I3-G Stationary 2D-code reader

DCR 202i FIX-N1-102-I3-G
A stationary 2D-code reader capable of reading both 1D and 2D codes with a reading distance of 40 to 120 mm. It features LED and infrared light sources and offers multiple connectivity options.
  • SKU
    2110-50141795
  • Manufacturer code
    50141795
  • Voltage type
    DC
  • Model
    Fixed mounted
  • Number of digital outputs
    1
  • Number of digital inputs
    1
  • Max. transmission range
    120 mm
  • Nominal voltage DC
    30 V
  • Radio standard Bluetooth
    false
  • Radio standard WLAN 802.11
    false
  • Type of fastening
    Other
  • With exchange lens
    false
  • Width
    43 mm
  • Height
    61 mm
  • Depth
    44 mm
  • Degree of protection (IP)
    IP65
  • Interface
    RS-232
  • Supplyoltage (V)
    18 ... 30
  • Ambient temperature
    0 ... 50
  • Type of interface
    RS 232
    Ethernet
    RS 422
  • Camera resolution horizontal (px)
    1280
  • Camera resolution vertical (px)
    960
  • Manufacturer Leuze

Product attachments

DS_DCR-202i-FIX-N1-102-I3-G_eng_50141795 (LINK)
