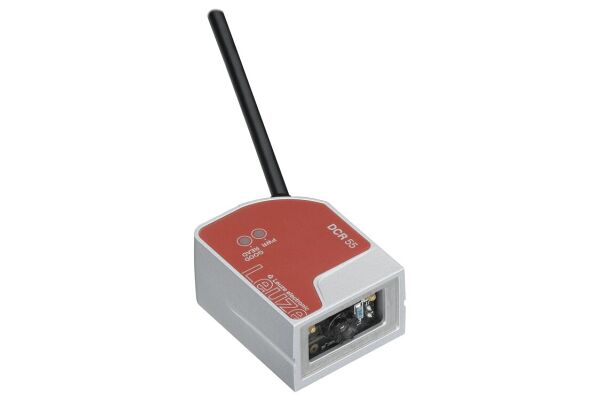

DCR55M2/R2-150-M12.8 Stationary 2D-code reader

DCR55M2/R2-150-M12.8
Compact stationary 2D-code reader capable of reading both 2D and 1D codes.
  • SKU
    2110-50136784
  • Manufacturer code
    50136784
  • Voltage type
    DC
  • Model
    Fixed mounted
  • Number of digital outputs
    1
  • Number of digital inputs
    1
  • Max. transmission range
    425 mm
  • Nominal voltage DC
    5.25 V
  • Max. electricity consumption
    0.425 A
  • Radio standard Bluetooth
    false
  • Radio standard WLAN 802.11
    false
  • Type of fastening
    Other
  • With exchange lens
    false
  • Width
    31.5 mm
  • Height
    20 mm
  • Depth
    40.3 mm
  • Degree of protection (IP)
    IP54
  • Interface
    RS-232
  • Supplyoltage (V)
    4.75 ... 5.25
  • Ambient temperature
    0 ... 50
  • Type of interface
    RS 232
  • Most suitable applications
    Reading of 2D codes Reading of 1D codes
  • Camera resolution horizontal (px)
    1280
  • Camera resolution vertical (px)
    960
  • Manufacturer Leuze

Product attachments

DS_DCR55M2-R2-150-M12-8_eng_50136784 (LINK)
