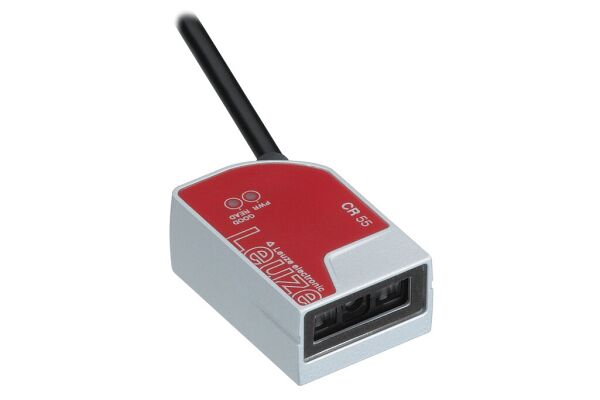

CR55M2/R2-150-M12.8 Stationary bar code reader

CR55M2/R2-150-M12.8
Compact stationary barcode reader with a scan engine module for efficient scanning.
  • SKU
    2110-50131582
  • Manufacturer code
    50131582
  • Type of electric connection
    Cable with connector
  • Width sensor
    31 mm
  • Height of sensor
    18.3 mm
  • Length of sensor
    45.5 mm
  • With configurable message output
    true
  • Ambient temperature
    0 - 50 °C
  • Rated control supply voltage DC
    4.5 - 5.5 V
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • With alert field output
    false
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Number of semiconductor outputs with signalling function
    1
  • Switching output
    NPN
  • Supplyoltage (V)
    4.5 ... 5.5
  • Ambient temperature
    0 ... 50
  • Type of interface
    RS 232
  • Reading method
    Line scanner
  • Light beam exit
    Front
  • Display
    LED
  • Special version
    Scan Engine Module
  • Manufacturer Leuze

Product attachments

DS_CR55M2-R2-150-M12-8_eng_50131582 (LINK)
