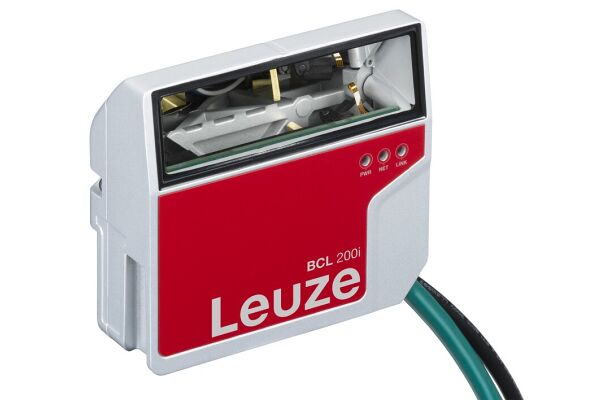

BCL 258i R1M 110 Stationary bar code reader

BCL 258i R1M 110
A stationary barcode reader equipped with advanced functions for efficient and reliable scanning.
  • SKU
    50143214
  • Manufacturer code
    50143214
  • Type of electric connection
    Cable with connector
  • Operation agent-safety class
    Safety class 3
  • Width sensor
    93 mm
  • Height of sensor
    38 mm
  • Length of sensor
    83 mm
  • With configurable message output
    true
  • Laser protection class
    Class 1
  • Ambient temperature
    0 - 40 °C
  • Rated control supply voltage DC
    18 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • With alert field output
    false
  • Wavelength of the sensor
    655 nm
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Number of semiconductor outputs with signalling function
    1
  • Supplyoltage (V)
    18 ... 30
  • Ambient temperature
    0 ... 40
  • Type of interface
    EtherNet IP
  • Reading method
    Raster scanner with deflecting mirror
  • Light beam exit
    Lateral with deflecting mirror
  • Display
    LED
  • Most suitable applications
    Industrial automation Inventory management Retail scanning
  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Leuze
