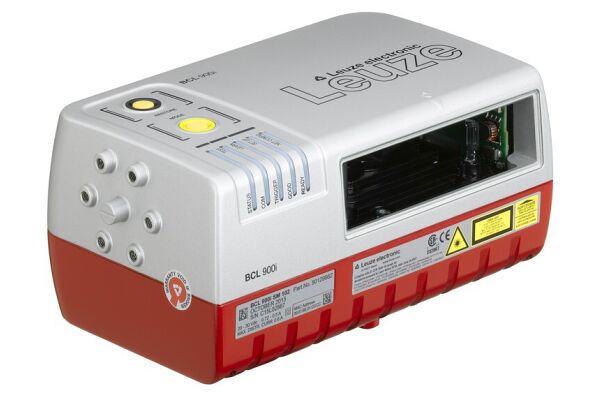

BCL 900i SN 102 Stationary bar code reader

BCL 900i SN 102
This stationary barcode reader features code fragment technology, alignment mode, AutoConfig, and an LED indicator.
  • SKU
    2110-50129661
  • Manufacturer code
    50129661
  • Type of electric connection
    Connector M12
  • Width sensor
    216 mm
  • Height of sensor
    96 mm
  • Length of sensor
    127 mm
  • With configurable message output
    true
  • Laser protection class
    Class 2
  • Ambient temperature
    0 - 50 °C
  • Rated control supply voltage DC
    10 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • With alert field output
    false
  • Wavelength of the sensor
    650 nm
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Number of semiconductor outputs with signalling function
    2
  • Switching output
    NPN
  • Supplyoltage (V)
    10 ... 30
  • Ambient temperature
    0 ... 50
  • Type of interface
    RS 232
    Ethernet
    RS 422
  • Reading method
    Line scanner
  • Light beam exit
    Front
  • Display
    LED
  • Operational controls
    Button(s)
  • Manufacturer Leuze

Product attachments

DS_BCL-900i-SN-102_eng_50129661 (LINK)
