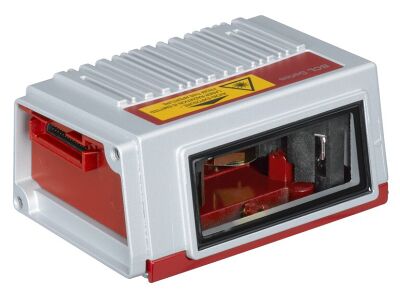

BCL 358i SF 102 D H Stationary bar code reader

BCL 358i SF 102 D H
This stationary barcode reader features advanced functions including code fragment technology and various auto modes. It is equipped with a line scanner for precise reading and comes with a front light beam exit.
  • SKU
    2110-50120777
  • Manufacturer code
    50120777
  • Type of electric connection
    Plug-in connection
  • Operation agent-safety class
    Safety class 3
  • Width sensor
    95 mm
  • Height of sensor
    44 mm
  • Length of sensor
    68 mm
  • With configurable message output
    true
  • Laser protection class
    Class 1
  • Ambient temperature
    -35 - 40 °C
  • Rated control supply voltage DC
    18 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • With alert field output
    false
  • Wavelength of the sensor
    655 nm
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Supplyoltage (V)
    18 ... 30
  • Ambient temperature
    -35 ... 40
  • Type of interface
    EtherNet IP
    USB 2.0
  • Reading method
    Line scanner
  • Light beam exit
    Front
  • Display
    LED, Monochromatic
  • Most suitable applications
    Industrial environments with varying temperatures
  • Special version
    Heating
  • Manufacturer Leuze

Product attachments

DS_BCL-358i-SF-102-D-H_eng_50120777 (LINK)
