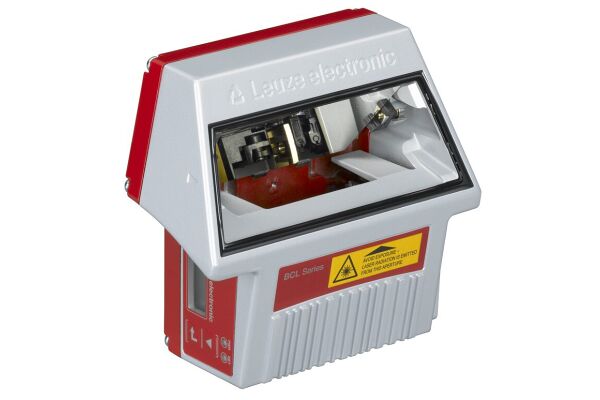

BCL 300i OL 100 D Stationary bar code reader

BCL 300i OL 100 D
This stationary barcode reader features a variety of functions including AutoControl, Alignment mode, AutoConfig, AutoReflAct, Code fragment technology, and Reference code comparison. It is designed for reliable and efficient scanning using an oscillating-mirror scanner.
  • SKU
    2110-50116183
  • Manufacturer code
    50116183
  • Type of electric connection
    Plug-in connection
  • Operation agent-safety class
    Safety class 3
  • Width sensor
    125 mm
  • Height of sensor
    58 mm
  • Length of sensor
    110 mm
  • With configurable message output
    true
  • Laser protection class
    Class 1
  • Ambient temperature
    0 - 40 °C
  • Rated control supply voltage DC
    18 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • With alert field output
    false
  • Wavelength of the sensor
    655 nm
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Scanning interval
    10 Hz
  • Supplyoltage (V)
    18 ... 30
  • Ambient temperature
    0 ... 40
  • Type of interface
    RS 232
    RS 422
    USB 2.0
  • Reading method
    Oscillating-mirror scanner
  • Light beam exit
    Zero position at side at angle less than 90°
  • Display
    LED, Monochromatic
  • Manufacturer Leuze

Product attachments

DS_BCL-300i-OL-100-D_eng_50116183 (LINK)
