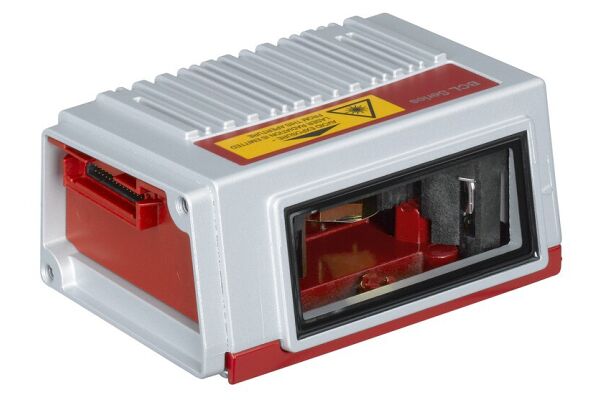

This stationary barcode reader is equipped with advanced features like AutoConfig, Alignment mode, and AutoControl. It supports a typical scanning rate of 1,000 scans/s and has a reading distance range of 100 to 470 mm. The device operates as a line scanner with a front light beam exit and includes a monochromatic LED graphic display.

SKU

2110-50116347
Manufacturer code

50116347
Type of electric connection

Plug-in connection
Operation agent-safety class

Safety class 3
Width sensor

95 mm
Height of sensor

44 mm
Length of sensor

68 mm
With configurable message output

true
Laser protection class

Class 1
Ambient temperature

-35 - 40 °C
Rated control supply voltage DC

18 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
With alert field output

false
Wavelength of the sensor

655 nm
With restart blockage

false
Suitable for safety functions

false
Supplyoltage (V)

18 ... 30
Ambient temperature

-35 ... 40
Type of interface

PROFIBUS DP
USB 2.0
Reading method

Line scanner
Light beam exit

Front
Display

LED, Monochromatic
Most suitable applications

Industrial barcode scanning Automated data collection
Special version

Heating

Manufacturer Leuze
