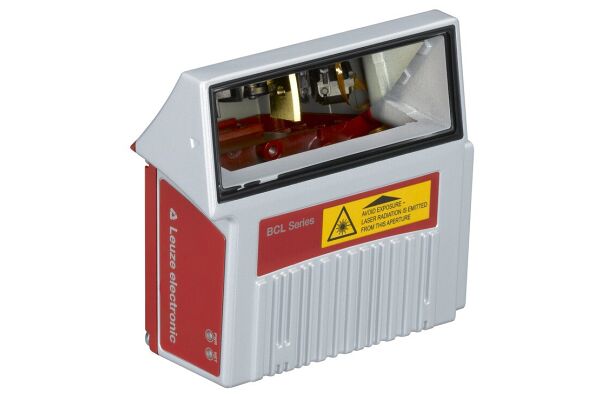

BCL 304i SF 100 Stationary bar code reader

BCL 304i SF 100
This stationary barcode reader offers advanced functionalities like AutoConfig and code fragment technology. It ensures efficient scanning with a rate of 1,000 scans per second and operates within a reading distance of 70 to 445 mm. The device features a line scanner with a lateral deflecting mirror and supports interfaces such as PROFIBUS DP and USB.
  • SKU
    2110-50116346
  • Manufacturer code
    50116346
  • Type of electric connection
    Plug-in connection
  • Operation agent-safety class
    Safety class 3
  • Width sensor
    103 mm
  • Height of sensor
    44 mm
  • Length of sensor
    96 mm
  • With configurable message output
    true
  • Laser protection class
    Class 1
  • Ambient temperature
    0 - 40 °C
  • Rated control supply voltage DC
    18 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • With alert field output
    false
  • Wavelength of the sensor
    655 nm
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Supplyoltage (V)
    18 ... 30
  • Ambient temperature
    0 ... 40
  • Type of interface
    PROFIBUS DP
    USB 2.0
  • Reading method
    Line scanner with deflecting mirror
  • Light beam exit
    Lateral with deflecting mirror
  • Display
    LED
  • Manufacturer Leuze

Product attachments

DS_BCL-304i-SF-100_eng_50116346 (LINK)
