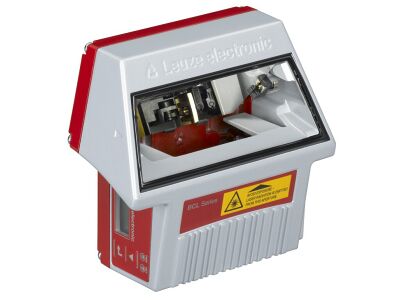

A stationary barcode reader featuring heating and advanced functionalities like AutoConfig, Alignment mode, and Code fragment technology. It is equipped with an oscillating-mirror scanner and offers interfaces such as PROFIBUS DP and USB.

SKU

2110-50116328
Manufacturer code

50116328
Type of electric connection

Plug-in connection
Operation agent-safety class

Safety class 3
Width sensor

125 mm
Height of sensor

58 mm
Length of sensor

110 mm
With configurable message output

true
Laser protection class

Class 1
Ambient temperature

-35 - 40 °C
Rated control supply voltage DC

18 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
With alert field output

false
Wavelength of the sensor

655 nm
With restart blockage

false
Suitable for safety functions

false
Scanning interval

10 Hz
Supplyoltage (V)

18 ... 30
Ambient temperature

-35 ... 40
Type of interface

PROFIBUS DP
USB 2.0
Reading method

Oscillating-mirror scanner
Light beam exit

Zero position at side at angle less than 90°
Display

LED, Monochromatic
Special version

Heating

Manufacturer Leuze
