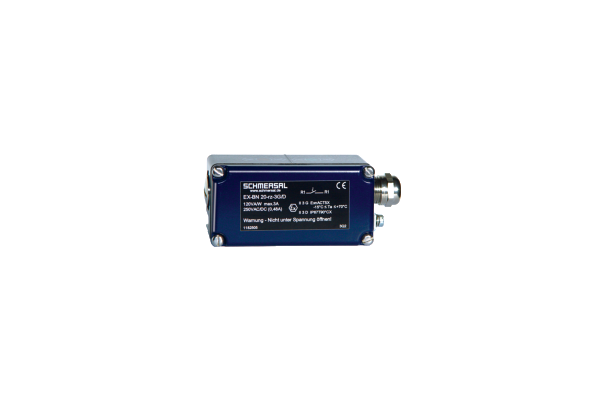

2 reed contacts
Explosion protection for ATEX Zones 2 and 22
Aluminium enlosure
104 mm x 52 mm x 47 mm
Actuating distance up to 50 mm depending on actuating magnet and version
Non-contact principle
Screw connection

SKU

4030661356907
Manufacturer code

101193763
Type of application, Actuating panel

lateral
Current, Switching current, maximum

3 A
Type of Execution, Active area

lateral
Actuating element

Magnet
Type of Execution, Housing construction form

rectangular
Type of Execution, IP Protection class, General

IP67
Type of Execution, Mechanical life, minimum,

1000000000 Operations
Type of Execution, Switching output, Digital output, electric

Reed contacts
Diameter, Cable cross-section of the cable glands, maximum

10 mm
Diameter, Cable cross-section of the cable glands, minimum

6 mm
Distance, Repeat accuracy R _R

0.25 mm
Height, Sensor

52 mm
Length, Sensor

47 mm
Width, Sensor

104 mm
Energy, Impact energy, maximum

4 J
Explosion protection, Manufacturer's declaration

ATEX Zone 2 and 22
Explosion protection parameters, category

3D
3G
Explosion protection parameters, designation

D II 3D Ex tc IIIC T90°C Dc X
D II 3G Ex nC IIC T5 Gc X
Explosion protection, regulations

EN IEC 60079-0
EN 60079-31
EN IEC 60079-15
Explosion protection parameters, zones

22
2
Material, active area

Metal film
Housing material

Light-alloy diecast, paint finish
Movement, actuating speed, maximum

18 m/s
Notice, Switch distance Sn

Actuating distance up to 45 mm depending on version and actu
Note, General

The opening and closing functions depend on the direction of
When the switches and actuators come together, the colours m
PIM maintenance status

Discharge "Online catalog"
Power, switching capacity, maximum

120 VA
Power, switching capacity, maximum

120 W
Recommendation, actuator

2x BP 15/2
BP 20
2x BP 10
BP 31
BP 11
BP 12
BP 21
BE 20
Type of switch function

Opener (NC)
Review, area, switch distance S_n

12 mm ... 45 mm
Type of electric connection

Screw terminals M20 x 1.5
Review, Resistance to vibrations to EN 60068-2-6

10 … 55 Hz, amplitude 1 mm
Review, restistance to shock

30 g / 11 ms
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661356907
SAP, product group

Initial
SAP, gross weight

330.000 g
SAP, net weight

330.000 g
Included in delivery, number and type, general

Actuator must be ordered separately.
Ex-certified screwed cable gland
Temperature, Ambient temperature[generated product variant]

-15 ... +70 °C
Temperature, ambient temperature, maximum

70 °C
Temperature, ambient temperature, minimum

-15 °C
Temperature, storage and transport temperature,[generated product variant]

-25 ... +70 °C
Temperature, storage and transport temperature, maximum

70 °C
Temperature, storage and transport temperature, minimum

-25 °C
Time, Bounce duration, maximum

0.6 ms
Time, Bounce duration, minimum

0.3 ms
Voltage, Switching voltage, VAC, maximum

250 VAC
Voltage, Switching voltage, VDC, maximum

250 VDC
Web Type

Product range
Selection (Yes/No), Bias magnet

Yes
Number, NC contacts

2
