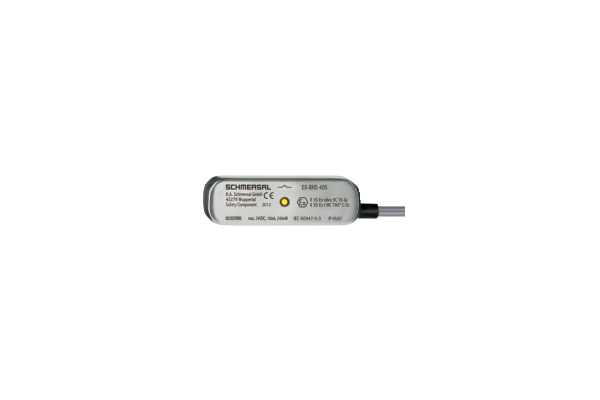

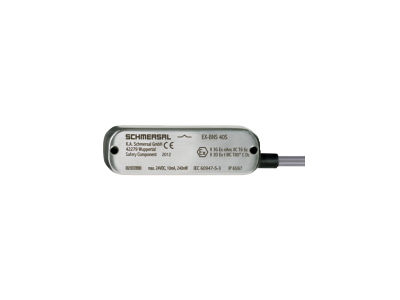

LED version
Explosion protection for ATEX Zones 2 and 22
Stainless steel enclosure
88 mm x 27 mm x 14,5 mm
Concealed mounting possible
Insensitive to transverse misalignment
no mechanical wear
Suitable for food processing industry
Cable connection suitable for the food industry

SKU

4030661428444
Manufacturer code

103002171
Explosion protection parameters, designation

D II 3D Ex tc IIIC T80°C Dc X
D II 3G Ex nA nC IIC T6 Gc
Housing material

Stainless steel (V4A)
PIM maintenance status

Discharge "Online catalog"
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661428444
SAP, product group

Initial
SAP, gross weight

200.000 g
SAP, net weight

200.000 g
Web Type

Product range
Current, Switching current, maximum

0.01 A
Type of Execution, Active area

lateral
Actuating element

Magnet
Type of Execution, Housing construction form

Block
Type of Execution, Terminals, mechanical

not flush
Type of Execution, IP Protection class, General

IP67
IP65
Diameter, Wire cross-section, AWG

23 AWG
Diameter, Wire cross-section,

0.25 mm<sup>2</sup>
Length, Cable

1 m
Length, Sensor

14.5 mm
Area, ensured switch distance OFF S_ar

18 mm
Area, ensured switch distance ON S_ao

8 mm
Energy, Impact energy, maximum

7 J
Explosion protection, Manufacturer's declaration

ATEX Zone 2 and 22
Explosion protection parameters, category

3D
3G
Explosion protection, regulations

EN IEC 60079-0
EN 60079-31
EN IEC 60079-15
Explosion protection parameters, zones

22
2
Material, cable mantle

LiYY
Motion, Direction of motion

Head-on to the active surface
Standard, standards

EN IEC 60947-5-3
BG-GS-ET-14
Note, General

Contact symbols shown for the closed condition of the guard
The contact configuration for versions with or without LED i
Number, NC contacts

2
Number, NO contacts

1
Number, cable wires, indication with cable cross-section, electrical

6
Power, switching capacity, maximum

0.24 W
Recommendation, actuator

BPS 40S-2
BPS 40S-1-C
BPS 40S-2-C
Recommended, Safety switchgear

SRB-E-301ST
SRB-E-201LC
Type of electrical connection

Cable
Review, Resistance to vibrations to EN 60068-2-6

10 … 55 Hz, amplitude 1 mm
Review, restistance to shock

30 g / 11 ms
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
Included in delivery, number and type, general

Actuator must be ordered separately.
Temperature, Ambient temperature[generated product variant]

-20 ... +60 °C
Temperature, ambient temperature, maximum

60 °C
Temperature, ambient temperature, minimum

-20 °C
Temperature, storage and transport temperature,[generated product variant]

-25 ... +80 °C
Temperature, storage and transport temperature, maximum

80 °C
Temperature, storage and transport temperature, minimum

-25 °C
Time, Switching frequency, maximum

5 Hz
Voltage, Switching voltage, VDC, maximum

24 VDC
Selection (Yes/No), Short-circuit recognition

Yes
Selection (Yes/No), Short circuit detection

Yes
Type of Execution, Switching output, Digital output, electric

Miscellaneous, Reed contacts
Selection (Yes/No), Coding

Yes
Note, Integral System Diagnostics, Status

The LED is illuminated when the guard is closed.
Current, Required rated short-circuit current to EN 60947-5-1

100 A
Height, Sensor

27 mm
Width, Sensor

88 mm
Note, Wiring diagram

Contact S21-S22 must be integrated in the safety circuit.
Review, selection (yes/no), Prerequisite evaluation unit

Yes
Selection (Yes/No), Integral System Diagnostics, general

Yes
