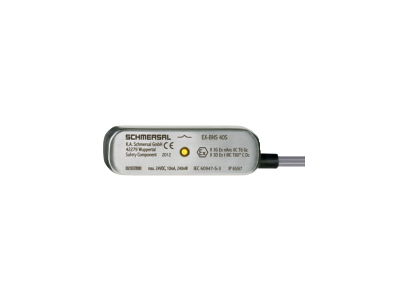

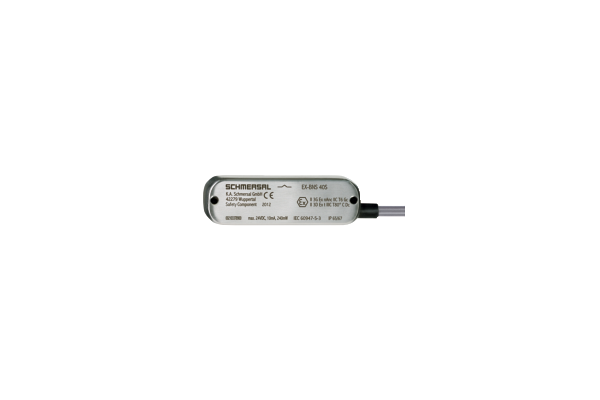

EX-BNS 40S-12Z EX machine safety sensor

EX-BNS 40S-12Z
Explosion protection for ATEX Zones 2 and 22
Stainless steel enclosure
88 mm x 27 mm x 14,5 mm
Concealed mounting possible
Insensitive to transverse misalignment
no mechanical wear
Suitable for food processing industry
Cable connection suitable for the food industry
  • SKU
    4030661428413
  • Manufacturer code
    103002167
  • Explosion protection parameters, designation
    D II 3D Ex tc IIIC T80°C Dc X
    D II 3G Ex nA nC IIC T6 Gc
  • Housing material
    Stainless steel (V4A)
  • PIM maintenance status
    Discharge "Online catalog"
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661428413
  • SAP, product group
    Initial
  • SAP, gross weight
    200.000 g
  • SAP, net weight
    200.000 g
  • Web Type
    Product range
  • Current, Switching current, maximum
    0.25 A
  • Type of Execution, Active area
    lateral
  • Actuating element
    Magnet
  • Type of Execution, Housing construction form
    Block
  • Type of Execution, Terminals, mechanical
    not flush
  • Type of Execution, IP Protection class, General
    IP67
    IP65
  • Diameter, Wire cross-section, AWG
    23 AWG
  • Diameter, Wire cross-section,
    0.25 mm<sup>2</sup>
  • Length, Cable
    1 m
  • Length, Sensor
    14.5 mm
  • Area, ensured switch distance OFF Sar
    18 mm
  • Area, ensured switch distance ON Sao
    8 mm
  • Energy, Impact energy, maximum
    7 J
  • Explosion protection, Manufacturer's declaration
    ATEX Zone 2 and 22
  • Explosion protection parameters, category
    3D
    3G
  • Explosion protection, regulations
    EN IEC 60079-0
    EN 60079-31
    EN IEC 60079-15
  • Explosion protection parameters, zones
    22
    2
  • Material, cable mantle
    LiYY
  • Motion, Direction of motion
    Head-on to the active surface
  • Standard, standards
    EN IEC 60947-5-3
    BG-GS-ET-14
  • Note, General
    Contact symbols shown for the closed condition of the guard
    The contact configuration for versions with or without LED i
  • Number, NC contacts
    2
  • Number, NO contacts
    1
  • Number, cable wires, indication with cable cross-section, electrical
    6
  • Power, switching capacity, maximum
    3 W
  • Recommendation, actuator
    BPS 40S-2
    BPS 40S-1-C
    BPS 40S-2-C
  • Recommended, Safety switchgear
    SRB-E-301ST
    SRB-E-201LC
  • Type of electrical connection
    Cable
  • Review, Resistance to vibrations to EN 60068-2-6
    10 … 55 Hz, amplitude 1 mm
  • Review, restistance to shock
    30 g / 11 ms
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameter
    EN ISO 13849-1
  • Included in delivery, number and type, general
    Actuator must be ordered separately.
  • Temperature, Ambient temperature[generated product variant]
    -20 ... +60 °C
  • Temperature, ambient temperature, maximum
    60 °C
  • Temperature, ambient temperature, minimum
    -20 °C
  • Temperature, storage and transport temperature,[generated product variant]
    -25 ... +80 °C
  • Temperature, storage and transport temperature, maximum
    80 °C
  • Temperature, storage and transport temperature, minimum
    -25 °C
  • Time, Switching frequency, maximum
    5 Hz
  • Voltage, Switching voltage, VAC, maximum
    24 VAC
  • Voltage, Switching voltage, VDC, maximum
    24 VDC
  • Selection (Yes/No), Short-circuit recognition
    Yes
  • Selection (Yes/No), Short circuit detection
    Yes
  • Type of Execution, Switching output, Digital output, electric
    Miscellaneous, Reed contacts
  • Selection (Yes/No), Coding
    Yes
  • Current, Required rated short-circuit current to EN 60947-5-1
    100 A
  • Height, Sensor
    27 mm
  • Width, Sensor
    88 mm
  • Note, Wiring diagram
    Contact S21-S22 must be integrated in the safety circuit.
  • Review, selection (yes/no), Prerequisite evaluation unit
    Yes

Product attachments

file-27077-8aeb039fcc9a1ff9979b558ddcba87d7.pdf (PDF, 459.95 kB)
