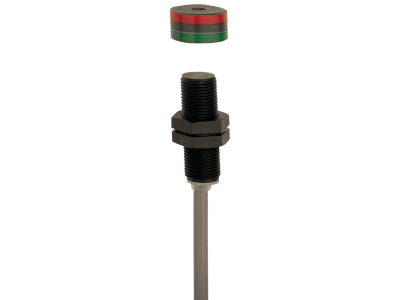

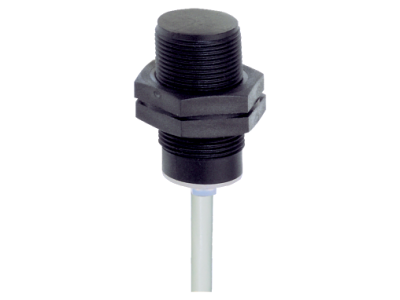

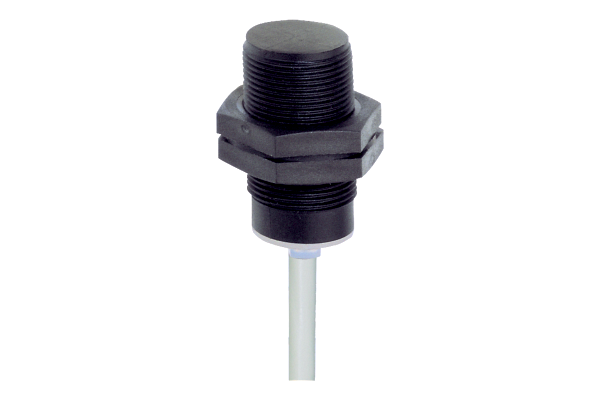

Explosion protection for ATEX Zones 2 and 22 Thermoplastic enclosure Ø M18 Particularly large switching distance Insensitive to transverse misalignment Suitable for food processing industry only in combination with BP 15 SS no mechanical wear
SKU
4030661379913
Manufacturer code
101208353
CAD, traceparts, product ID
33-22052019-077538
Explosion protection parameters, designation
D II 3D Ex tc IIIC T80°C Dc X D II 3G Ex nC IIC T6 Gc X
Housing material
Glass-fibre, reinforced thermoplastic
PIM maintenance status
Discharge "Online catalog"
SAP, basic quantity unit
Piece
SAP, EAN (European Article Number)
4030661379913
SAP, product group
Initial
SAP, gross weight
401.000 g
SAP, net weight
401.000 g
Web Type
Product range
Current, Switching current, maximum
0.25 A
Type of Execution, Active area
front side
Actuating element
Magnet
Type of Execution, Housing construction form
Cylinder, thread
Type of Execution, Terminals, mechanical
quasi-flush
Type of Execution, IP Protection class, General
IP67
Diameter, Wire cross-section, AWG
23 AWG
Diameter, Wire cross-section,
0.25 mm<sup>2</sup>

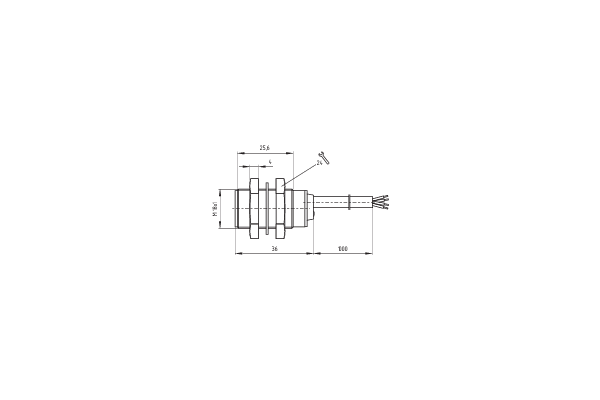

Length, Cable
10 m
Length, Sensor
36 mm
Diameter, Sensors, Metric ISO-Thread
M18
Area, ensured switch distance OFF Sar
22 mm
32 mm
Area, ensured switch distance ON Sao
18 mm
8 mm
Energy, Impact energy, maximum
2 J
Explosion protection, Manufacturer's declaration
ATEX Zone 2 and 22
Explosion protection parameters, category
3D
3G
Explosion protection, regulations
EN IEC 60079-0
EN 60079-31
EN IEC 60079-15
Explosion protection parameters, zones
22
2
Material, cable mantle
PVC
Motion, Direction of motion
Head-on to the active surface
Standard, standards
EN IEC 60947-5-3
BG-GS-ET-14
Note, General
Contact symbols shown for the closed condition of the guard
The safety sensor must be mounted in such a way that actuati
Number, NC contacts
2
Number, NO contacts
1
Number, Safety contacts
2
Number, cable wires, indication with cable cross-section, electrical
6
Power, switching capacity, maximum
5 W
Recommendation, actuator
BP 10
BP 8
BP 6
BP 15 SS
Recommended, Safety switchgear
SRB-E-301ST
SRB-E-201LC
Review, distance, actuator switch distance
Actuating magnet BP 15 SS, Sao: 18 mm
Actuating magnet BP 10, Sao: 18 mm
Actuating magnet BP 8, Sao: 8 mm
Actuating magnet BP 6, Sao: 8 mm
Actuating magnet BP 8, Sar: 20 mm
Actuating magnet BP 15 SS, Sar: 28 mm
Actuating magnet BP 10, Sar: 28 mm
Actuating magnet BP 6, Sar: 20 mm
