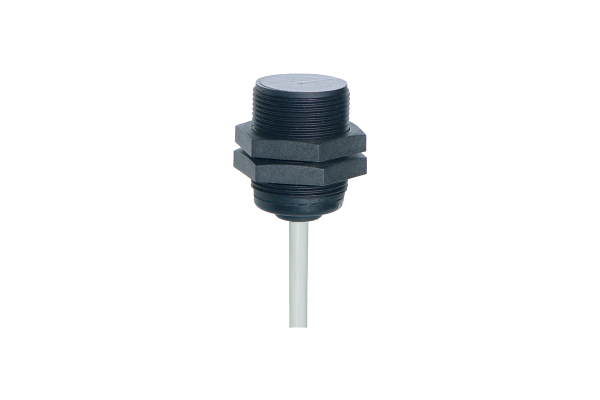

LED version
Explosion protection for ATEX Zones 2 and 22
Thermoplastic enclosure
Ø M30
With coding
Insensitive to transverse misalignment
Suitable for food processing industry only in combination with BPS 303 SS
no mechanical wear

SKU

4030661346878
Manufacturer code

101189236
CAD, traceparts, product ID

33-22052019-077540
Explosion protection parameters, designation

D II 3D Ex tc IIIC T80°C Dc X
D II 3G Ex nC IIC T6 Gc X
Housing material

Glass-fibre, reinforced thermoplastic
PIM maintenance status

Discharge "Online catalog"
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661346878
SAP, product group

Initial
SAP, gross weight

235.000 g
SAP, net weight

235.000 g
Included in delivery, number and type, mounting material

2x nuts M30 x 1.5
Web Type

Product range
Current, Switching current, maximum

0.01 A
Type of Execution, Active area

front side
Actuating element

Magnet
Type of Execution, Housing construction form

Cylinder, thread
Type of Execution, Terminals, mechanical

quasi-flush
Type of Execution, IP Protection class, General

IP67
Diameter, Wire cross-section, AWG

23 AWG
Diameter, Wire cross-section,

0.25 mm<sup>2</sup>
Length, Cable

5 m
Length, Sensor

44 mm
Diameter, Sensors, Metric ISO-Thread

M30
Area, ensured switch distance OFF S_ar

15 mm
Area, ensured switch distance ON S_ao

5 mm
Energy, Impact energy, maximum

4 J
Explosion protection, Manufacturer's declaration

ATEX Zone 2 and 22
Explosion protection parameters, category

3D
3G
Explosion protection, regulations

EN IEC 60079-0
EN 60079-31
EN IEC 60079-15
Explosion protection parameters, zones

22
2
Material, cable mantle

PVC
Motion, Direction of motion

Head-on to the active surface
Note, General

Contact symbols shown for the closed condition of the guard
The contact configuration for versions with or without LED i
Number, NC contacts

2
Number, NO contacts

1
Number, Safety contacts

2
Number, cable wires, indication with cable cross-section, electrical

6
Power, switching capacity, maximum

0.24 W
Recommendation, actuator

BPS 300
BPS 303
BPS 303 SS
coded
Recommended, Safety switchgear

SRB-E-301ST
SRB-E-201LC
Type of electrical connection

Cable
Review, Resistance to vibrations to EN 60068-2-6

10 … 55 Hz, amplitude 1 mm
Review, restistance to shock

30 g / 11 ms
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
Included in delivery, number and type, general

Actuator must be ordered separately.
Temperature, Ambient temperature[generated product variant]

-25 ... +70 °C
Temperature, ambient temperature, maximum

70 °C
Temperature, ambient temperature, minimum

-25 °C
Temperature, storage and transport temperature,[generated product variant]

-25 ... +70 °C
Temperature, storage and transport temperature, maximum

70 °C
Temperature, storage and transport temperature, minimum

-25 °C
Time, Switching frequency, maximum

5 Hz
Voltage, Switching voltage, VDC, maximum

24 VDC
Selection (Yes/No), Short-circuit recognition

Yes
Selection (Yes/No), Short circuit detection

Yes
Type of Execution, Switching output, Digital output, electric

Miscellaneous, Reed contacts
Diameter, width across flats, abbreviation

36 BK
Material, nut

Thermoplastic
Number, cable wires, electrical

6
Tightening torque, torque, nuts, maximum

3 Nm
Selection (Yes/No), Coding

Yes
Note, Integral System Diagnostics, Status

The LED is illuminated when the guard door is open.
Selection (Yes/No), Integral System Diagnostics, status

Yes

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
