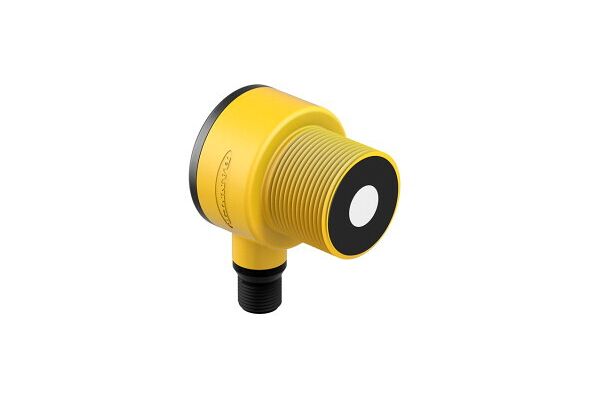

T30UIPAQ Ultrasonic Sensor, diffuse mode sensor, With Analog Output

T30UIPAQ

Ultrasonic Sensor, diffuse mode sensor, With Analog Output, Operating voltage 15…24 VDC, Max. range 1000 mm, Compact design, Connection via male M12 x 1, Operating voltage 15…24 VDC, PNP transistor output and analog output for current, Measuring range adjustable via teach-in, Blind zone: 15 cm, Range: 100 cm

  • SKU
    0662488559755
  • Manufacturer code
    3055975

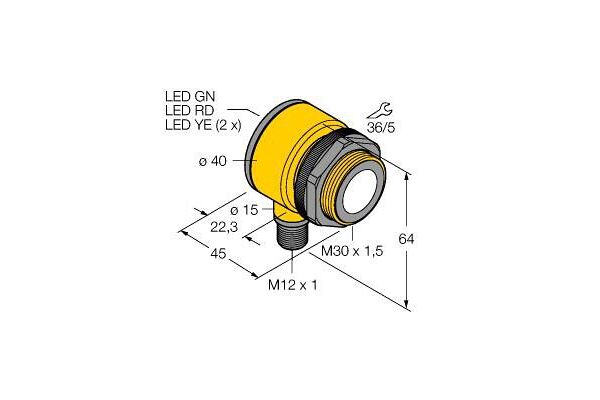

  • Length of sensor
    45 mm
  • Ambient temperature
    -20 - 70 °C
  • Supply voltage
    15 - 24 V
  • Switching frequency
    20 Hz
  • Diameter sensor
    40 mm
  • Measuring range length
    150 - 1000 mm
  • No-load current
    50 mA
  • Type of electric connection
    Plug-in connection
  • Type of switching output
    PNP
  • Type of switch function
    Normally open contact (NO)
  • Material active area of sensor
    Plastic
  • Housing material
    Plastic
  • Type of analogy output
    4 mA ... 20 mA
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Connector gender
    male
  • Switching output
    PNP

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-39012-2b39a2d55d842c59616ec8ea52358e77.pdf (PDF, 506.13 kB)
