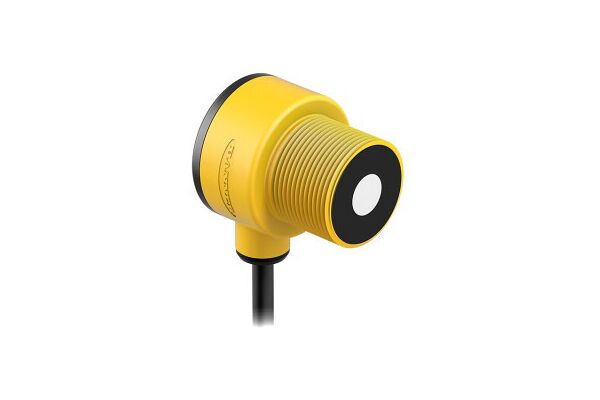

T30UINB Ultrasonic Sensor, diffuse mode sensor, With Analog Output

T30UINB

Ultrasonic Sensor, diffuse mode sensor, With Analog Output, Operating voltage 15…24 VDC, Max. range 2000 mm, Cable length 2 m, Compact design, Cable, 2 m, Operating voltage 15…24 VDC, PNP transistor output and analog output for current, Measuring range adjustable via teach-in, Blind zone: 30 cm, Range: 200 cm

  • SKU
    0662488559830
  • Manufacturer code
    3055983
  • Length of sensor
    45 mm
  • Ambient temperature
    -20 - 70 °C
  • Supply voltage
    15 - 24 V
  • Switching frequency
    10 Hz
  • Diameter sensor
    40 mm
  • Measuring range length
    300 - 2000 mm
  • Type of electric connection
    Cable
  • Type of switching output
    PNP
  • Type of switch function
    Normally open contact (NO)
  • Material active area of sensor
    Plastic
  • Housing material
    Plastic
  • Type of analogy output
    4 mA ... 20 mA
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Switching output
    PNP
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-37853-e62d82f00395b9deee84d49130b982d9.pdf (PDF, 378.67 kB)
