Special version: Multiplex operation, Synchronous operation; Opening angle: 8 °; Measurement range: 150 ... 1,600 mm; Geometric resolution:

SKU

2110-50136106
Manufacturer code

50136106
Type of electric connection

Connector M12
Type of switching output

PNP
Type of switch function

Normally open contact (NO)
Blind zone

150 mm
Length of sensor

88.3 mm
Setting procedure

Manual adjustment
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cylinder plain
Ambient temperature

-20 - 70 °C
Supply voltage

10 - 30 V
Switching frequency

2 Hz
Voltage type

DC
DC
DC
DC
Housing material

Plastic
Plastic
Plastic
Plastic
Synchronisation possible

false
Diameter sensor

18 mm
Type of analogy output

-10V ... +10 V
Adjustable distance

150 - 1600 mm
Measuring range length

150 - 1600 mm
No-load current

50 mA
Max. output current

100 A
Relative repeat accuracy

0.5 %
Material active area of sensor

Plastic
Supplyoltage (V)

10 ... 30
Design

Cylindrical
Operational controls

Control buttons
Special version

Multiplex operation
Synchronous operation
Analog output

Voltage
Measurement range (mm)

150 ... 1600
Inputs/outputs (pcs)

1

Manufacturer Leuze
Need our help?

or call us at

An inquiry about DMU318-1600.W3/4VK-M12

Please enter your inquiry below and we'll get back to you as soon as possible.

Company

Your name

E-mail

Phone number

Message

Product attachments

PAL_DMU318_400W_1600W_en_50135824 (LINK)

Cart

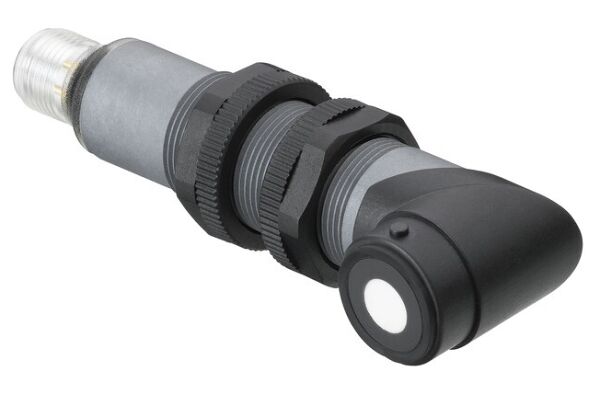

DMU318-1600.W3/4VK-M12 Ultrasonic distance sensor
