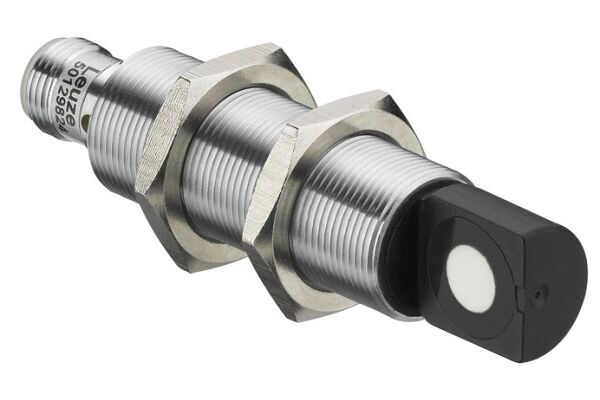

Special version: Teach input; Operating range: 0.15 ... 1 m; Direction of beam: 90° - deflection; Opening angle: 16 °; Supply voltage: 15 ... 30 V, DC; Digital switching outputs: 1 Piece(s); Switching output 1: Transistor, PNP, NO (normally open); Switching frequency: 8 Hz; Connection: Connector, M12, 5 -pin; Design: Cylindrical, M18; Dimensions: 18 mm x 85.8 mm; Housing material: Metal

SKU

2110-50129825
Manufacturer code

50129825
Type of electric connection

Connector M12
Type of switching output

PNP
Type of switch function

Normally open contact (NO)
Length of sensor

85.8 mm
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cylinder, screw-thread
Ambient temperature

-25 - 70 °C
Supply voltage

15 - 30 V
Switching frequency

8 Hz
Voltage type

DC
DC
DC
DC
Housing material

Other
Metal
Synchronisation possible

false
Diameter sensor

18 mm
Degree of protection (IP)

IP67
Material of cable sheath

Other
No-load current

50 mA
Max. output current

150 A
Relative repeat accuracy

0.15 %
Supplyoltage (V)

15 ... 30
Design

Cylindrical
Switching frequency (Hz)

8
Direction of beam

90° - deflection
Special version

Teach input
Operating range (m)

0.15 ... 1

Manufacturer Leuze
