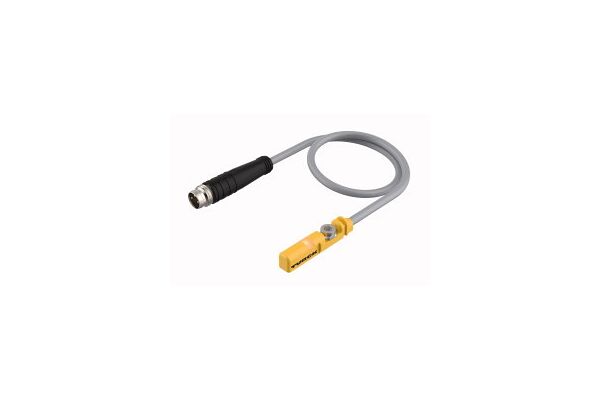

BIM-UNT-AP6X-0.3-PSG3S Magnetic Field Sensor, For Pneumatic Cylinders

BIM-UNT-AP6X-0.3-PSG3S

Magnetic Field Sensor, For Pneumatic Cylinders, Operating voltage 10…30 VDC, Cable length 0.3 m, For T-groove cylinders without mounting accessories, Optional accessories for mounting on other cylinder designs, One-hand mounting possible, Stable mounting, Magneto-resistive sensor, DC 3-wire, 10…30 VDC, NO contact, PNP output, Pigtail with male end, Ø 8 mm

  • SKU
    4047101159967
  • Manufacturer code
    4685722
  • Type of actuation
    Magnet
  • Type of electric connection
    Cable with connector
  • Type of switching output
    PNP

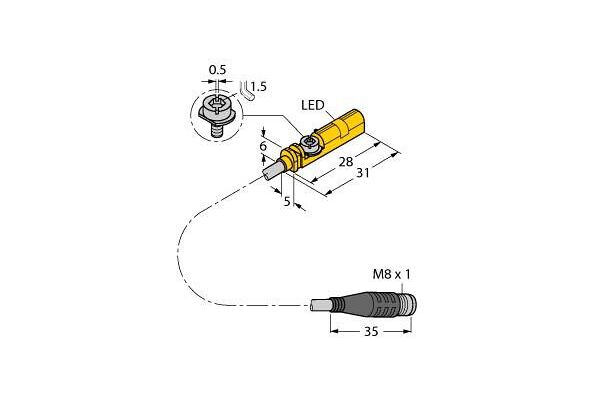

  • Width sensor
    5 mm
  • Height of sensor
    6 mm
  • Length of sensor
    28 mm
  • Construction type housing
    Cuboid
  • Housing material
    Plastic
  • Ambient temperature
    -25 - 70 °C
  • Rated supply voltage at DC
    10 - 30 V
  • Voltage type
    DC
  • Cross-/short circuit identification possible
    true
  • Degree of protection (IP)
    IP68
  • Connector gender
    male
  • Type of switch function
    NO contact
  • Type of switching output
    PNP
  • Cable length (m)
    0.3
  • Manufacturer Turck

Product attachments

file-50607-915b1913b22cdb750b337bc730f3fb54.pdf (PDF, 729.91 kB)
